109; Asa, Turku (ID = 958214) Radio
Asa, Turku: 109 [Radio] ID = 958214 922x692
Select picture or schematic to display from thumbnails on the right and click for download.
For model 109, Asa, Turku

Country:  Finland
Manufacturer / Brand:  Asa, Turku
Year: 1952 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: ECH42 EAF42 EAF42 EL41 EM34 AZ41
Main principle Superheterodyne (common); ZF/IF 485 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and more than two Short Wave bands.
Details
Power type and voltage Alternating Current supply (AC) / 110; 127; 220; 250 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 20 cm = 7.9 inch
Power out
from Radiomuseum.org Model: 109 - Asa, Turku
Material Wooden case
Shape Tablemodel, with any shape - general.

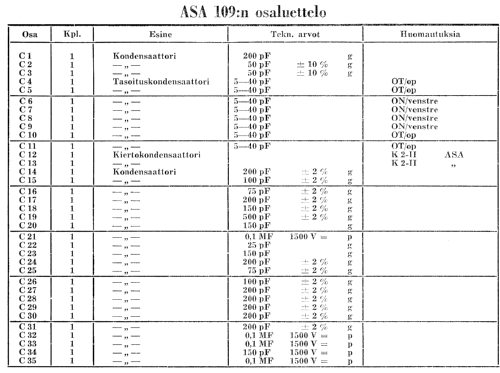

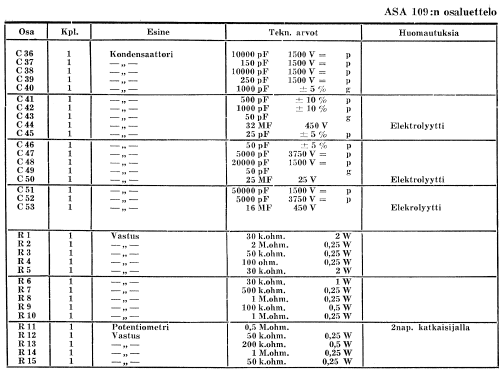

Literature/Schematics (1) -- Original-techn. papers.

Model page created by Lasse Nirhamo. See "Data change" for further contributors.



All listed radios etc. from Asa, Turku
Here you find 296 models, 209 with images and 126 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
