112; Asa, Turku (ID = 1366613) Radio
Asa, Turku: 112 [Radio] ID = 1366613 922x692
Select picture or schematic to display from thumbnails on the right and click for download.
For model 112, Asa, Turku:
The most left knob has been added later.

Country:  Finland
Manufacturer / Brand:  Asa, Turku
Year: 1953 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: EC92 EF80 EF41 EABC80
Main principle Superheterodyne (common)
Tuned circuits 8 FM circuit(s)
Wave bands FM Broadcast Band Only
Details
Power type and voltage Alternating Current supply (AC) / 110; 127; 220; 250 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: 112 - Asa, Turku
Material Leather / canvas / plastic - over other material
Dimensions (WHD) 330 x 210 x 100 mm / 13 x 8.3 x 3.9 inch

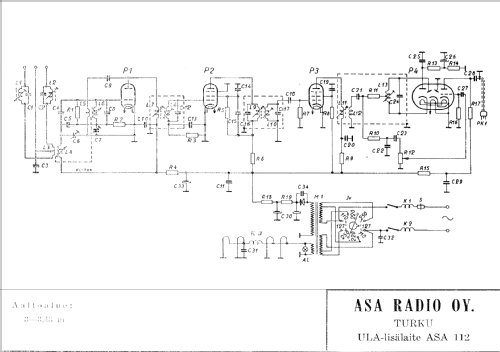

Literature/Schematics (1) -- Original-techn. papers.

Model page created by Lasse Nirhamo. See "Data change" for further contributors.
