For model 114, Asa, Turku

Country:  Finland
Manufacturer / Brand:  Asa, Turku
Year: 1953 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 8: EC92 ECH81 EF85 EAF42 EM34 EABC80 EL41 AZ41
Main principle Superheterodyne (common); ZF/IF 485 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)     9 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110; 127; 220; 250 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 25 cm = 9.8 inch
Power out
from Radiomuseum.org Model: 114 - Asa, Turku
Material Wooden case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 500 x 330 x 280 mm / 19.7 x 13 x 11 inch
Net weight (2.2 lb = 1 kg) 13.5 kg / 29 lb 11.8 oz (29.736 lb)

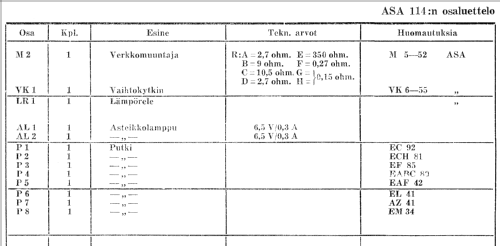

Literature/Schematics (1) -- Original-techn. papers.

Model page created by Lasse Nirhamo. See "Data change" for further contributors.
