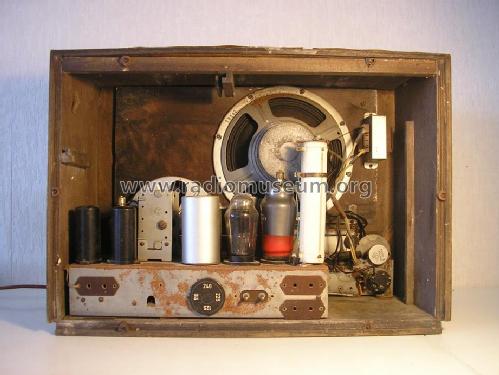

360Y; Asa, Turku (ID = 1038876) Radio 360Y; Asa, Turku (ID = 1038878) Radio

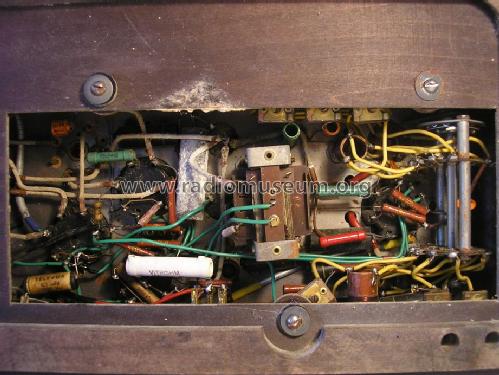

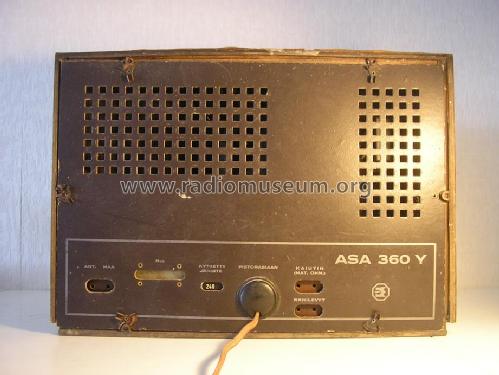

360Y; Asa, Turku (ID = 1038879) Radio 360Y; Asa, Turku (ID = 1038882) Radio

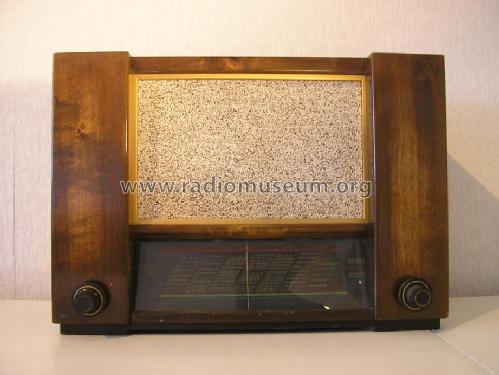

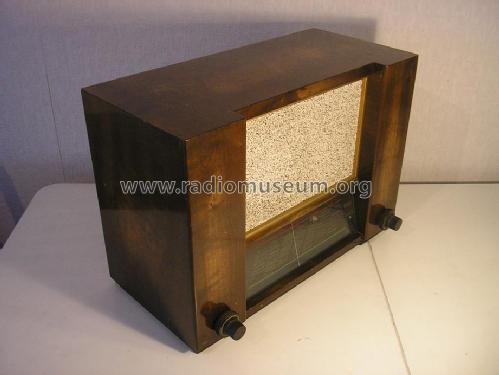

360Y; Asa, Turku (ID = 1092575) Radio 360Y; Asa, Turku (ID = 1092576) Radio

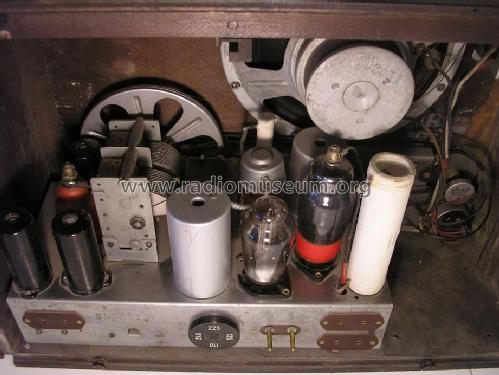

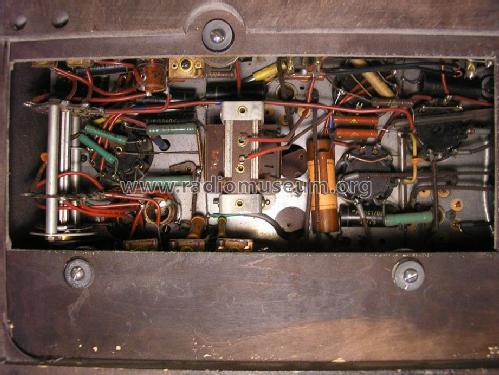

360Y; Asa, Turku (ID = 1092577) Radio 360Y; Asa, Turku (ID = 1092578) Radio
Use red slider bar for more.
360Y; Asa, Turku (ID = 1038876) Radio
Asa, Turku: 360Y [Radio] ID = 1038876 922x692
Select picture or schematic to display from thumbnails on the right and click for download.
For model 360Y, Asa, Turku

Country:  Finland
Manufacturer / Brand:  Asa, Turku
Year: 1945 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: UCH21 UCH21 UBL21 UY1N
Main principle Superheterodyne (common)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage AC/DC-set / 125-220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 20 cm = 7.9 inch
Power out
from Radiomuseum.org Model: 360Y - Asa, Turku
Material Wooden case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 480 x 340 x 225 mm / 18.9 x 13.4 x 8.9 inch
Notes Alternative tubes: ECH3, ECH3, CBL1, CY2

Model page created by Timo Rantasaari. See "Data change" for further contributors.
