• Country
• Finland

• Manufacturer / Brand
• Asa Radio Oy; Turku

• Year
• 1946 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 209474

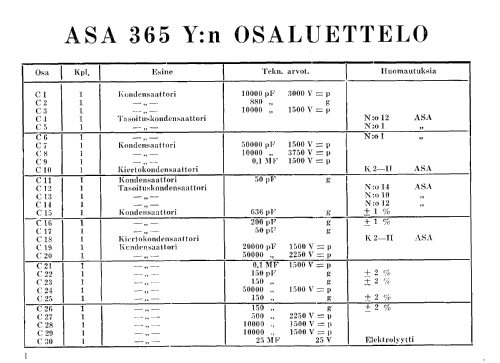

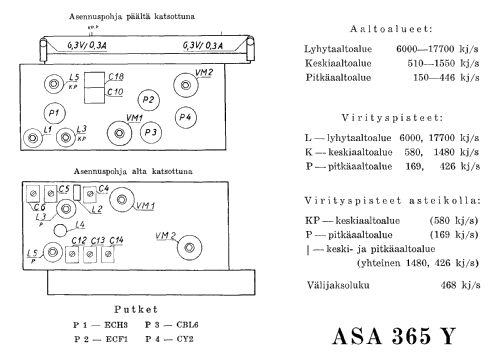

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• ECH3 ECF1 CBL6 CY2

• Main principle
• Superheterodyne (common); ZF/IF 468 kHz

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• AC/DC-set

• Loudspeaker
• Permanent or electro-dynamic (moving coil), system not known yet.

• Material
• Wooden case

• from Radiomuseum.org
• Model: 365Y - Asa Radio Oy; Turku

• Shape
• Tablemodel, with any shape - general.

• Notes
• Dial lamps: 2x 6,3V / 0,3A

• Author
• Model page created by Timo Rantasaari. See "Data change" for further contributors.
