585; Asa, Turku (ID = 452573) Radio
Asa, Turku: 585 [Radio] ID = 452573 848x623
Select picture or schematic to display from thumbnails on the right and click for download.
For model 585, Asa, Turku

Country:  Finland
Manufacturer / Brand:  Asa, Turku
Year: 1948 ? Category: Broadcast Receiver - or past WW2 Tuner

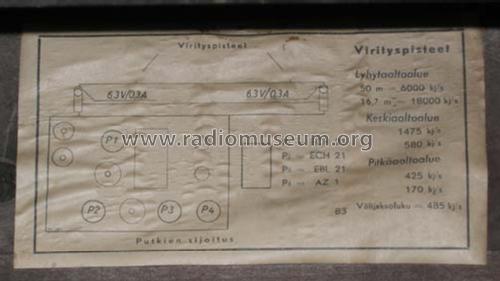

Valves / Tubes 4: ECH21 ECH21 EBL21 AZ1
Main principle Superheterodyne (common)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 225; 240; Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 16 cm = 6.3 inch
Power out
from Radiomuseum.org Model: 585 - Asa, Turku
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 500 x 340 x 225 mm / 19.7 x 13.4 x 8.9 inch
Source of data -- Collector info (Sammler)

Model page created by a member from FIN. See "Data change" for further contributors.



All listed radios etc. from Asa, Turku
Here you find 296 models, 209 with images and 126 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
