592; Asa, Turku (ID = 1069261) Radio
Asa, Turku: 592 [Radio] ID = 1069261 933x577
Select picture or schematic to display from thumbnails on the right and click for download.

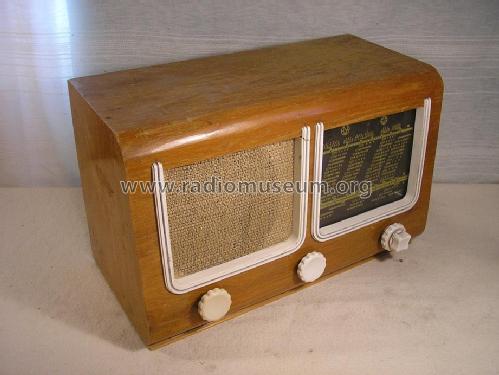

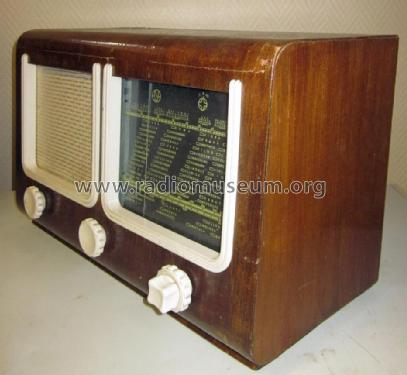

For model 592, Asa, Turku

Country:  Finland
Manufacturer / Brand:  Asa, Turku
Year: 1949 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: ECH41 EAF41 EAF41 EL41 AZ41
Main principle Superheterodyne (common); ZF/IF 485 kHz
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110; 127; 220; 240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 inch = 20.3 cm
Power out 9 W (unknown quality)
from Radiomuseum.org Model: 592 - Asa, Turku
Material Wooden case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 432 x 273 x 209 mm / 17 x 10.7 x 8.2 inch
Notes The service literature says that the voltages are 110, 127, 220 and 240 V but the actual voltage selector in the radio is marked 110, 125, 225 and 240 V. Power consumption is 38 W.
Net weight (2.2 lb = 1 kg) 9 kg / 19 lb 13.2 oz (19.824 lb)

Model page created by Timo Rantasaari. See "Data change" for further contributors.
