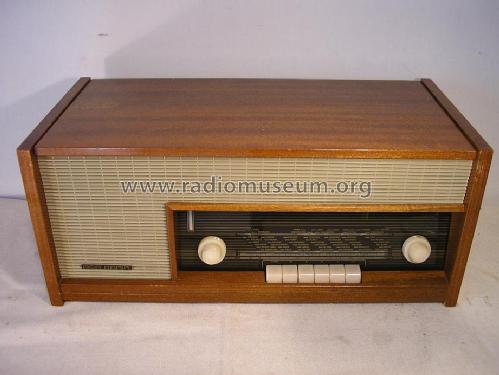

757L; Asa, Turku (ID = 1324065) Radio 757L; Asa, Turku (ID = 1324064) Radio

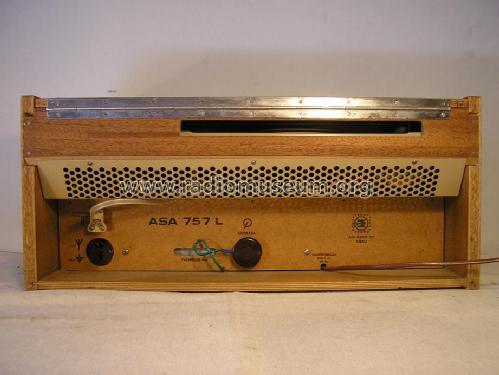

757L; Asa, Turku (ID = 1324066) Radio 757L; Asa, Turku (ID = 1324067) Radio

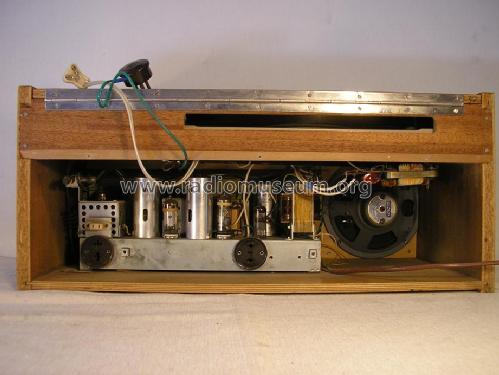

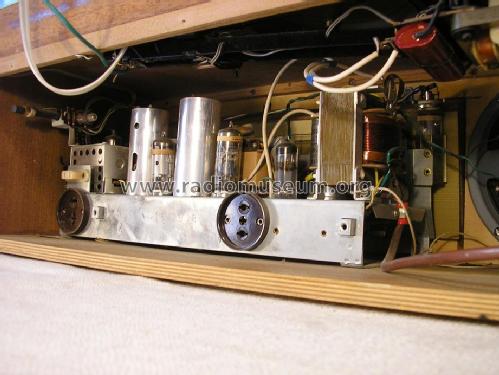

757L; Asa, Turku (ID = 1324068) Radio 757L; Asa, Turku (ID = 1324069) Radio

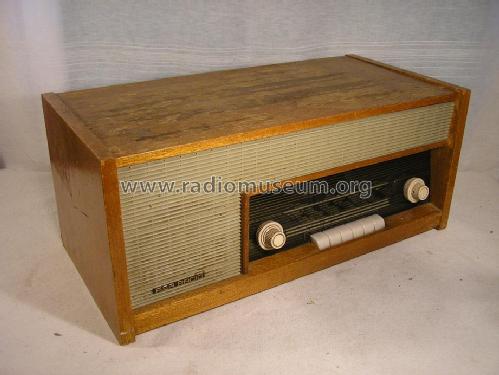

757L; Asa, Turku (ID = 1366379) Radio 757L; Asa, Turku (ID = 1366380) Radio

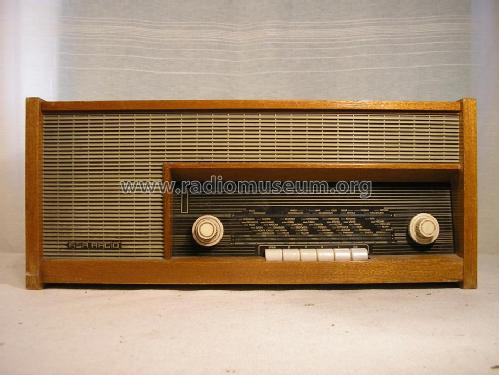

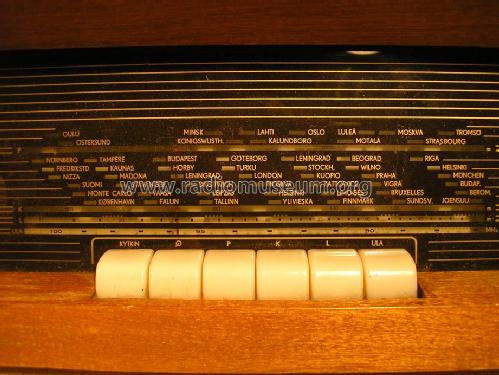

757L; Asa, Turku (ID = 1366381) Radio 757L; Asa, Turku (ID = 1366382) Radio
Use red slider bar for more.

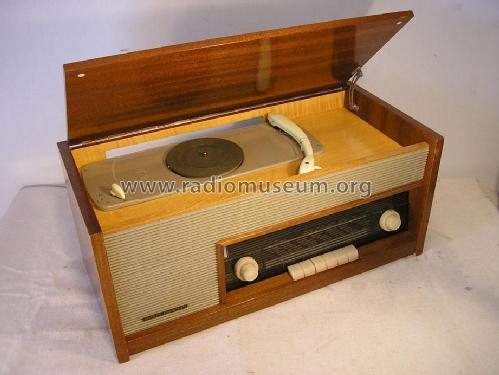

757L; Asa, Turku (ID = 1324065) Radio
Asa, Turku: 757L [Radio] ID = 1324065 922x692
Select picture or schematic to display from thumbnails on the right and click for download.
For model 757L, Asa, Turku

Country:  Finland
Manufacturer / Brand:  Asa, Turku
Year: 1959 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: ECC85 ECH81 EF89 EABC80 EM84 EL95
Main principle Superheterodyne (common); ZF/IF 485/10700 kHz
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.

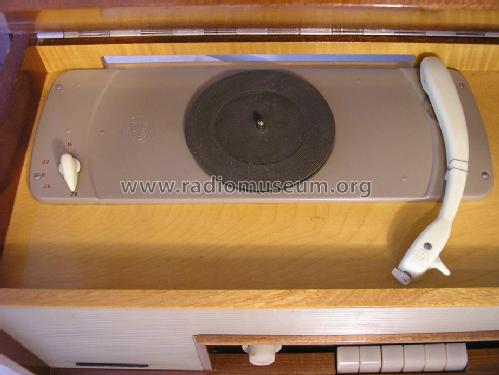

Details Record Player (not changer)
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 inch = 15.2 cm
Power out
from Radiomuseum.org Model: 757L - Asa, Turku
Material Wooden case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 570 x 240 x 380 mm / 22.4 x 9.4 x 15 inch
Notes Selenium-rectifier: B250 C100. Scale-bulbs: 6,3V / 0,3A.

Model page created by Timo Rantasaari. See "Data change" for further contributors.
