• Year
  • 1960
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 192114

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 6
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Broadcast, Long Wave, Short Wave plus FM or UHF.
  • Power type and voltage
  • Alternating Current supply (AC) / 220 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: 764 - Asa Radio Oy; Turku
  • Shape

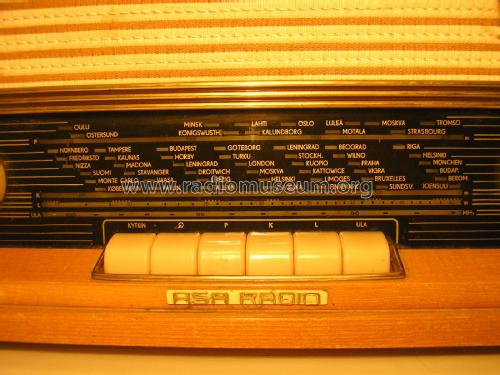

  • Tablemodel with Push Buttons.
  • Dimensions (WHD)
  • 440 x 260 x 210 mm / 17.3 x 10.2 x 8.3 inch
  • Notes
  • Speaker 4 1/2" x 10" elliptical Rectifier: Selenium B250C100 Scale-bulb: 6,3V / 0,3A
  • Author
  • Model page created by Timo Rantasaari. See "Data change" for further contributors.
