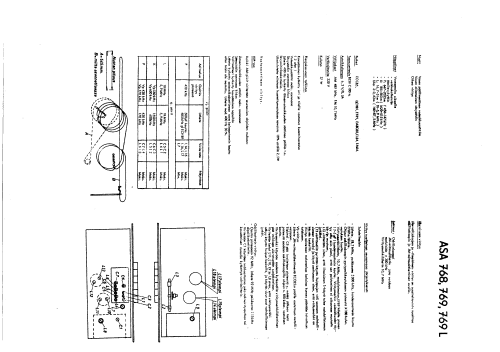

768; Asa, Turku (ID = 1330698) Radio
768; Asa, Turku (ID = 1261142) Radio 768; Asa, Turku (ID = 1280602) Radio
768; Asa, Turku (ID = 1280603) Radio 768; Asa, Turku (ID = 1280604) Radio
768; Asa, Turku (ID = 1280605) Radio 768; Asa, Turku (ID = 1280606) Radio
Use red slider bar for more.
768; Asa, Turku (ID = 1261142) Radio
Asa, Turku: 768 [Radio] ID = 1261142 922x692
Select picture or schematic to display from thumbnails on the right and click for download.
For model 768, Asa, Turku

Country:  Finland
Manufacturer / Brand:  Asa, Turku
Year: 1961 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: ECC85 ECH81 EF89 EABC80 EM84 EL84
Main principle Superheterodyne (common); ZF/IF 485/10700 kHz
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out
from Radiomuseum.org Model: 768 - Asa, Turku
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 410 x 250 x 210 mm / 16.1 x 9.8 x 8.3 inch
Notes Loudspeaker 4 1/2" x 10" Selenium rectifier: B 250 C 100 tc Scale-bulbs 6,3V 0,3A

Model page created by Timo Rantasaari. See "Data change" for further contributors.
