820

820; Asa, Turku (ID = 1154625) Radio
820; Asa, Turku (ID = 997641) Radio 820; Asa, Turku (ID = 997642) Radio
820; Asa, Turku (ID = 997643) Radio 820; Asa, Turku (ID = 997644) Radio
820; Asa, Turku (ID = 997645) Radio
Use red slider bar for more.
820; Asa, Turku (ID = 997641) Radio
Asa, Turku: 820 [Radio] ID = 997641 820x615

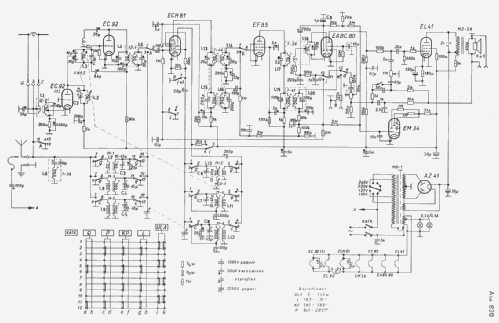

Select picture or schematic to display from thumbnails on the right and click for download.
For model 820, Asa, Turku

Country:  Finland
Manufacturer / Brand:  Asa, Turku
Year: 1954 Category: Broadcast Receiver - or past WW2 Tuner

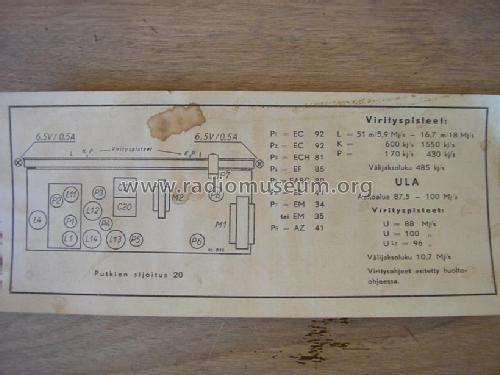

Valves / Tubes 8: EC92 EC92 ECH81 EF85 EM34 EABC80 EL41 AZ41
Main principle Superheterodyne (common)
Tuned circuits 6 AM circuit(s)     9 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110; 127; 220; 240 Volt

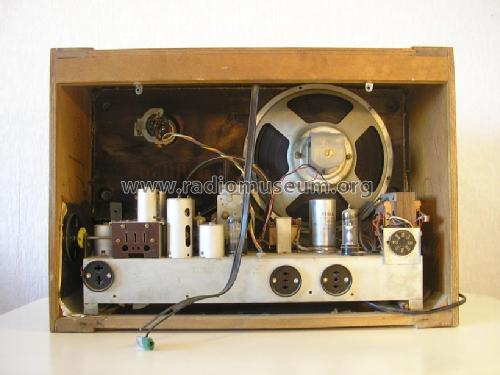

Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 inch = 20.3 cm
Power out
from Radiomuseum.org Model: 820 - Asa, Turku
Material Wooden case

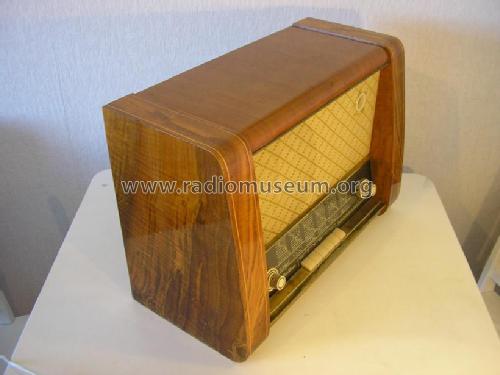

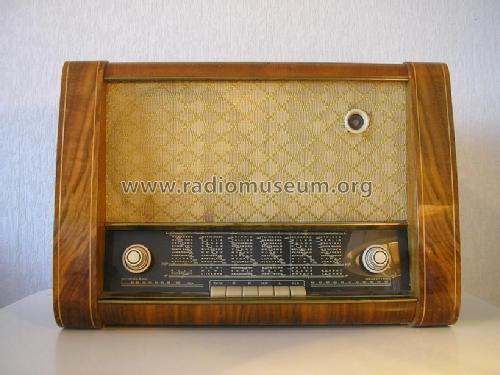

Shape Tablemodel with Push Buttons.
Dimensions (WHD) 560 x 390 x 270 mm / 22 x 15.4 x 10.6 inch

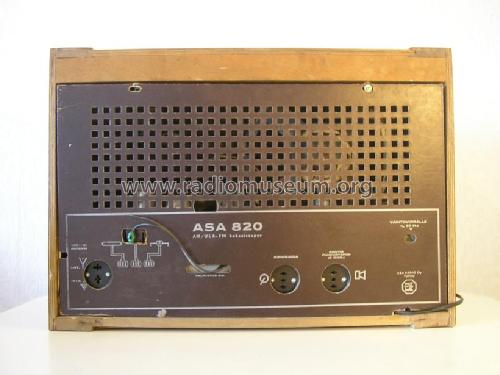

Notes 820 has output for external loudspeaker and input for a recordplayer.
Price in first year of sale 33'500.00 FIM
Mentioned in Finish Radio Magazine December 1954

Model page created by Jari Aalto. See "Data change" for further contributors.
