V 40 A

V 40 A; ASEA Finland, where? (ID = 610634) Radio V 40 A; ASEA Finland, where? (ID = 610636) Radio
V 40 A; ASEA Finland, where? (ID = 610635) Radio V 40 A; ASEA Finland, where? (ID = 610637) Radio
V 40 A; ASEA Finland, where? (ID = 610638) Radio V 40 A; ASEA Finland, where? (ID = 1732369) Radio
V 40 A; ASEA Finland, where? (ID = 1732370) Radio V 40 A; ASEA Finland, where? (ID = 1732372) Radio
V 40 A; ASEA Finland, where? (ID = 1732374) Radio V 40 A; ASEA Finland, where? (ID = 1732376) Radio
Use red slider bar for more.

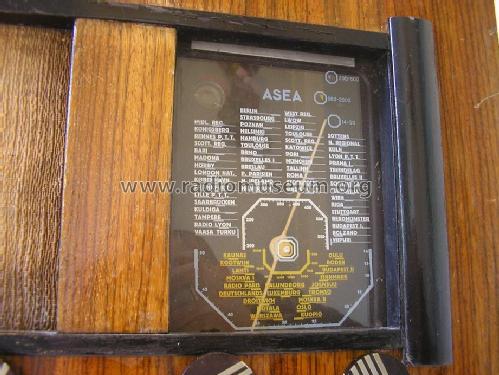

V 40 A; ASEA Finland, where? (ID = 610634) Radio
ASEA Finland, where?: V 40 A [Radio] ID = 610634 900x566
Select picture or schematic to display from thumbnails on the right and click for download.
For model V 40 A, ASEA Finland, (where?)

Country:  Finland
Manufacturer / Brand:  ASEA Finland, (where?)
Year: 1939 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: ECH11 EBF11 ECL11 AZ11 EM4
Main principle Superheterodyne (common)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110-240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 20.5 cm = 8.1 inch
Power out 4 W (unknown quality)
from Radiomuseum.org Model: V 40 A - ASEA Finland, where?
Material Wooden case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 485 x 307 x 270 mm / 19.1 x 12.1 x 10.6 inch
Net weight (2.2 lb = 1 kg) 10.5 kg / 23 lb 2 oz (23.128 lb)

Model page created by Lars-G. Lundelin. See "Data change" for further contributors.



All listed radios etc. from ASEA Finland, (where?)
Here you find 1 models, 1 with images and 0 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.






Forum contributions about this model
ASEA Finland, where?: V 40 A
Threads: 1 | Posts: 1
Hits: 1186     Replies: 0
asea: V 40 A;
Lars-G. Lundelin
30.Oct.09
  1

It's now quite certain that the ASEA V 40 A is assembled by Hellberg, Helsinki (FIN) in 1939. There's also informations that suchlike set probably also been imported.
