• Country
• Spain

• Manufacturer / Brand
• Askar, Ascar; Irún

• Year
• 1963

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 231172

• Number of Tubes
• 6

• Valves / Tubes
• ECC85 ECH81 EF89 UABC80 UL84 UY85

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, 2 Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 125; 150; 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Material
• Bakelite case

• from Radiomuseum.org

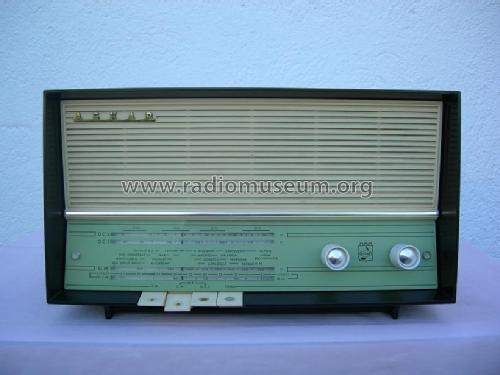

• Model: AE-1331-A - Askar, Ascar; Irún

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 383 x 200 x 176 mm / 15.1 x 7.9 x 6.9 inch

• Notes

• Precio catálogo julio 1963: 3.196 pts. + I.L. 359,055 = PVP 3.555,55 pts.

• Price in first year of sale
• 3,555.55 ESP

• Author
• Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.

• Other Models

• Here you find 127 models, 121 with images and 35 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
