• Year
  • 1963
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 81365

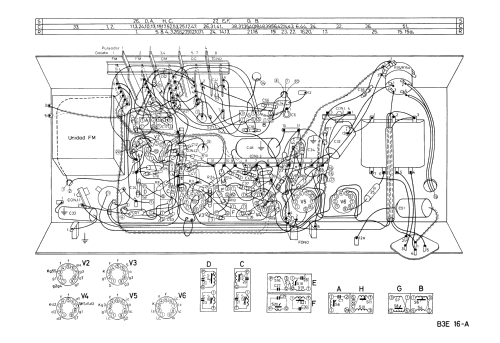

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 6
  • Main principle
  • Superheterodyne (common); ZF/IF 470/10700 kHz; 2 AF stage(s)
  • Wave bands
  • Broadcast, 2 Short Wave plus FM or UHF.
  • Power type and voltage
  • Alternating Current supply (AC) / 110; 127; 150; 220 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical / Ø 10 cm = 3.9 inch
  • Material
  • Bakelite case
  • from Radiomuseum.org

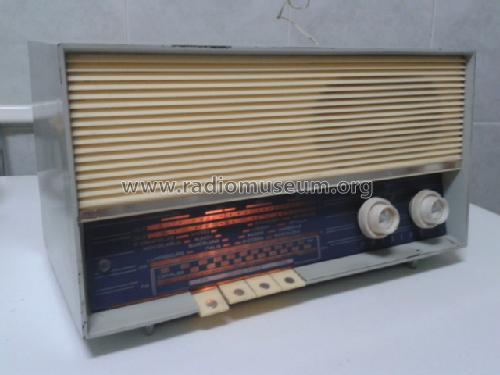

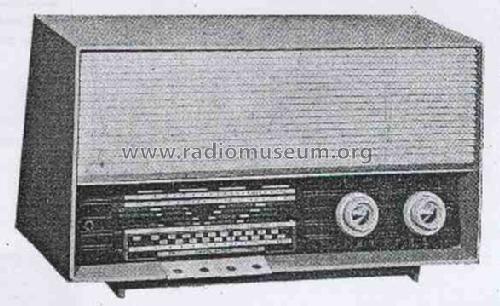

  • Model: B3E16A - Philips Ibérica, COPRESA,
  • Shape
  • Tablemodel with Push Buttons.
  • Dimensions (WHD)
  • 350 x 200 x 176 mm / 13.8 x 7.9 x 6.9 inch
  • Net weight (2.2 lb = 1 kg)
  • 4 kg / 8 lb 13 oz (8.811 lb)
  • Literature/Schematics (1)
  • -- Original-techn. papers.
