506

506; Aster; Milano (ID = 310200) Car Radio
506; Aster; Milano (ID = 2300651) Car Radio 506; Aster; Milano (ID = 310192) Car Radio
506; Aster; Milano (ID = 310193) Car Radio 506; Aster; Milano (ID = 310194) Car Radio
506; Aster; Milano (ID = 310195) Car Radio 506; Aster; Milano (ID = 310197) Car Radio
506; Aster; Milano (ID = 310198) Car Radio 506; Aster; Milano (ID = 310199) Car Radio
Use red slider bar for more.
506; Aster; Milano (ID = 2300651) Car Radio
Aster; Milano: 506 [Car Radio] ID = 2300651 1073x647
Select picture or schematic to display from thumbnails on the right and click for download.
For model 506, Aster; Milano

Country:  Italy
Manufacturer / Brand:  Aster; Milano
Year: 1950 ?? Category: Car Radio, perhaps also + sound player/recorder
Valves / Tubes 5: ECH42 UAF42 EBC41 EL41 EZ40
Main principle Superheterodyne (common); ZF/IF 475 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast plus more than 2 Short Wave bands.
Details
Power type and voltage Line / Batteries (any type) / AC 120; 160; 220 / 12 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 11 cm = 4.3 inch
Power out 3 W (unknown quality)
from Radiomuseum.org Model: 506 - Aster; Milano
Material Metal case
Shape Chassis only or for «building in»
Dimensions (WHD) 145 x 115 x 200 mm / 5.7 x 4.5 x 7.9 inch
Notes MW + SW with 19, 25, 31, 41 and 49m Band.

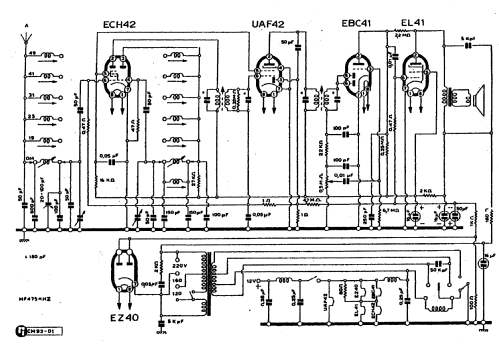

Mentioned in -- Schematic (D.E. Ravalico, Il Radiolibro, 13° edizione, 1952, Hoepli)

Model page created by Pietro Gallia. See "Data change" for further contributors.



All listed radios etc. from Aster; Milano
Here you find 22 models, 9 with images and 13 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
