For model Caliph PZ Thermometer-light tuning dial, Astor (brand), Radio Corporation Pty., Ltd.; Melbourne:
Astor Caliph thermometer-light tuning dial front. Photo credit James Chalmers

Country:  Australia
Manufacturer / Brand:  Astor (brand), Radio Corporation Pty., Ltd.; Melbourne
alternative name

Radio Corp.of Australia
Year: 1934 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 6A7 6D6 6B7 43 25Y5
Main principle Superheterodyne (common); ZF/IF 456 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Alternating Current supply (AC) / 240 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: Caliph PZ [Thermometer-light tuning dial] - Astor brand, Radio Corporation
Material Wooden case

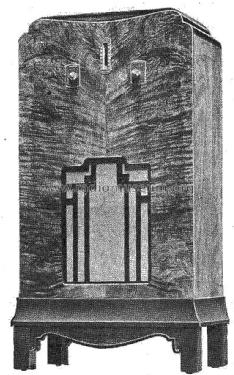

Shape Console, Lowboy (legs < 50 %).
Notes

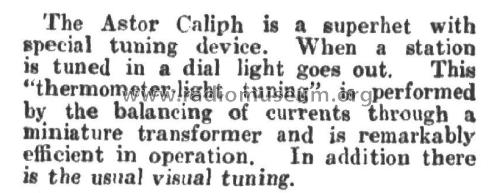

First model of the 1934 Caliph Console with the elongated peephole dial and "thermometer-light" tuning, also referred to as the blinklight tuning model.

Astor called the later version the Aero Dial Caliph which did not have blinklight tuning.

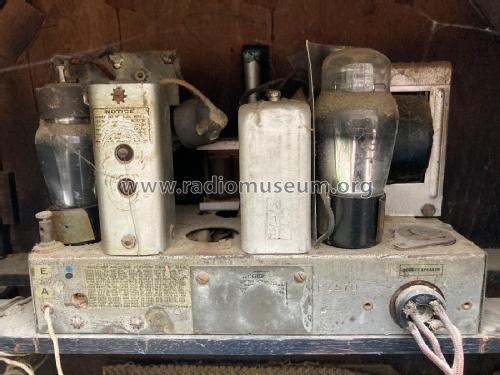

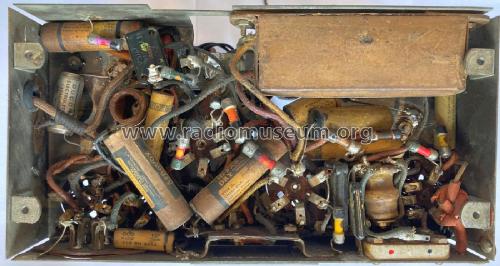

Both models used the PZ chassis essentially the same as the Astor Mickey Mouse OZ chassis with the OZ power plug removed and the power cable arranged to enter the hole where the OZ speaker change over switch was mounted.

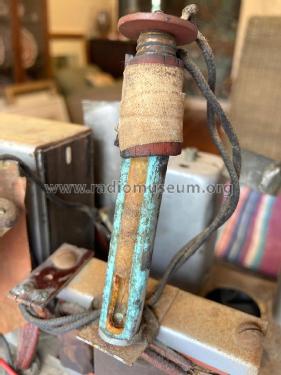

This version of chassis could possibly be identified by earlier serial numbers(TBC) and has a saturable transformer connected in the IF B+ circuit which controls the current in a special winding on the power transformer which feeds the dial light. Both Caliph models used the same power transformer which had this additional winding designated “D” on the schematic compared to the OZ.

Price in first year of sale 19.00 Aus£

Model page created by Stuart Irwin. See "Data change" for further contributors.
