Transistor CPN

Transistor CPN; Astor brand, Radio (ID = 1609709) Radio
Transistor CPN; Astor brand, Radio (ID = 1616486) Radio Transistor CPN; Astor brand, Radio (ID = 1448770) Radio
Transistor CPN; Astor brand, Radio (ID = 1615033) Radio Transistor CPN; Astor brand, Radio (ID = 1616487) Radio
Transistor CPN; Astor brand, Radio (ID = 1616488) Radio
Use red slider bar for more.
Transistor CPN; Astor brand, Radio (ID = 1616486) Radio
Astor brand, Radio: Transistor CPN [Radio] ID = 1616486 930x590
Select picture or schematic to display from thumbnails on the right and click for download.
For model Transistor CPN, Astor (brand), Radio Corporation Pty., Ltd.; Melbourne:
The restored radio - the handle is a replacement and the heat discolouration can just be noticed.

Country:  Australia
Manufacturer / Brand:  Astor (brand), Radio Corporation Pty., Ltd.; Melbourne
alternative name

Radio Corp.of Australia
Year: 1958/1959 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 6: 2N486 2N484 2N484 2N362 or. 2N363 or. CK872 2N632 or. 2N185 or. OC72 or. CK878 2N632 or. 2N185 or. OC72 or. CK878 1N295
Main principle Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 5 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Dry Batteries / 4 x 1.5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 7 cm = 2.8 inch
Power out
from Radiomuseum.org Model: Transistor CPN - Astor brand, Radio Corporation
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 150 x 95 x 40 mm / 5.9 x 3.7 x 1.6 inch
Notes

Astor CPN

The first Australian pocket portable. In an attractive gift pack complete with earphone for personal listening. Six transistors give high sensitivity and powerful performance. Four colour combination.

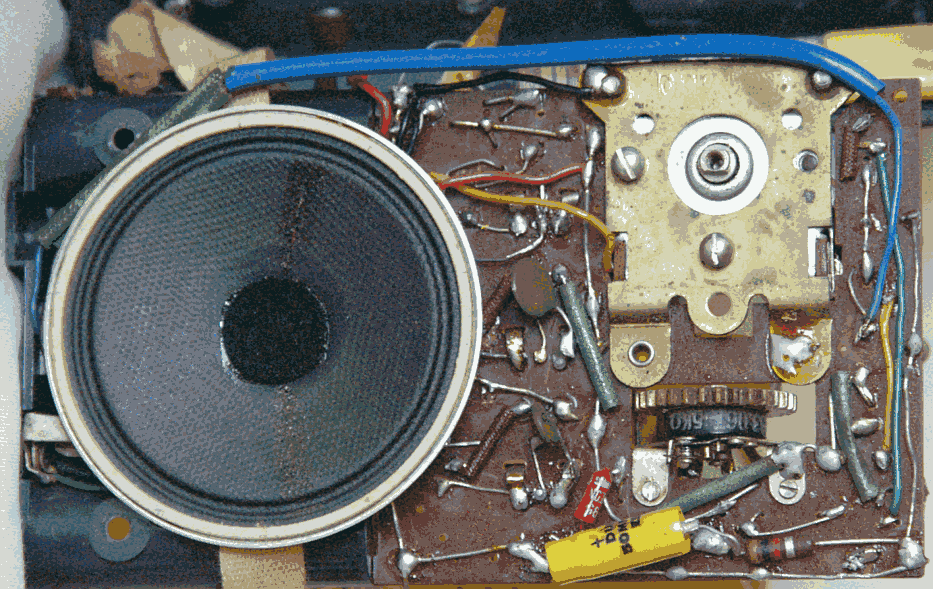

This radio is unusual in that it uses a circuit board but not a “Printed” circuit board. The board is punched or drilled and all wiring is “point to point” on the “non-component: side of the board. There are actually three components on that side of the board. All transistors are mounted in sockets. When the board is removed from the case, the tuning dial remains captive in the fascia. The front panel is clear perspex.

  • Speaker 2¾" Rola Type 2 C.
  • Batteries 4 x 1.5V AA.
  • Colours avalable in Blossom Pink, Coral, Cherry Red, Chinese Red, Dark Green, Grey, Black, Lime, Tan, Lawn Green & Charcoal. Each colour is available in four versions to suit NSW, VIC/TAS, QLD & SA/WA.
Net weight (2.2 lb = 1 kg) 0.480 kg / 1 lb 0.9 oz (1.057 lb)
Price in first year of sale 34.65 AUS £
Literature/Schematics (1) - - Manufacturers Literature (Astor Technical Bulletin CPN-1, 12/11/1958; CPN-2, 12/2/1959 & CPN-3, 27/4/1959.)
Literature/Schematics (2) J.R. Publications Transistor Radio Service Handbook (Vol. 1, 1960, Page A22.)
Literature/Schematics (3) J.R. Publications Transistor Radio Service Handbook (A Series Handbook, Page A53.)
Literature/Schematics (4) Mingay's Radio Electrical Weekly Price Service (REWPS) (Feb 1959.)

Model page created by Stuart Irwin. See "Data change" for further contributors.



All listed radios etc. from Astor (brand), Radio Corporation Pty., Ltd.; Melbourne
Here you find 843 models, 422 with images and 343 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.







Forum contributions about this model
Astor brand, Radio: Transistor CPN
Threads: 1 | Posts: 1
Hits: 1218     Replies: 0
astor: CPN;
Brian Wilson
25.Feb.14
  1

If ever any radio can be called a "Transision Model", this would qualify. The Circuit Board is drilled and there is no printed copper, just point-to-point wiring. The larger Astors of this era, E.G. the HPN, used tag strips and point-to-point wiring whilst all the later "pocket" radios that are the same size as the CPN use printed circuit boards. The wiring from the rod antenna to the board is over-long and flimsy. Along with many (most?) transistor radios of this era, my example has suffered from leaking batteries.
