Town & Country MF026 (CD256)

Town & Country MF026 ; Astor brand, Radio (ID = 1683225) Radio

Town & Country MF026 ; Astor brand, Radio (ID = 1683227) Radio
Town & Country MF026 ; Astor brand, Radio (ID = 1358240) Radio Town & Country MF026 ; Astor brand, Radio (ID = 1358241) Radio
Town & Country MF026 ; Astor brand, Radio (ID = 1358242) Radio Town & Country MF026 ; Astor brand, Radio (ID = 1358243) Radio
Town & Country MF026 ; Astor brand, Radio (ID = 1358244) Radio Town & Country MF026 ; Astor brand, Radio (ID = 1358245) Radio
Use red slider bar for more.
Town & Country MF026 ; Astor brand, Radio (ID = 1358240) Radio
Astor brand, Radio: Town & Country MF026 [Radio] ID = 1358240 933x547
Select picture or schematic to display from thumbnails on the right and click for download.
For model Town & Country MF026 (CD256), Astor (brand), Radio Corporation Pty., Ltd.; Melbourne

Country:  Australia
Manufacturer / Brand:  Astor (brand), Radio Corporation Pty., Ltd.; Melbourne
alternative name

Radio Corp.of Australia
Year: 1971 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 8: BF194 BF195 BF195 BC148 BC148 OC955 OC951 OC955 OA90 BY126 BY126
Main principle Superheterodyne (common); ZF/IF 455 kHz
Tuned circuits 5 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Alternating Current supply (AC) / 240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm
Power out
from Radiomuseum.org Model: Town & Country MF026 - Astor brand, Radio Corporation
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel without bush buttons, Mantel/Midget/Compact up to 14
Dimensions (WHD) 350 x 180 x 100 mm / 13.8 x 7.1 x 3.9 inch
Notes

This is an upgrade of the Astor M5D and M6D radios with which it shares a common rear case.

It has 5 silicon transistors in the first stages and three OC types in the output stage. Two of these transistors have "Flag" heatsinks and drive the 15 Ω speaker in a "Push - Pull" arrangement through a matching transformer. All transistor are silicon types. Output transistors OC951 & OC955 are a complimetary matched pair & are sensibly equivalent to BD137/BD138. There are 2 silicon diodes to provide full wave rectification of the power supply.

The tuning capacitor is driven by the dial cord and there is a tone control. The schematic is not included inside the case but the dial cord arrangement is. This radio is heavier than the M6D as all controls are mounted on a piece of 1.2 mm galvanised metal. This links all the controls for earthing purposes and differs from the earlier radios where the metal control shafts are brought through the case with no provision for a safety earth.

Net weight (2.2 lb = 1 kg) 2.010 kg / 4 lb 6.8 oz (4.427 lb)
Price in first year of sale 49.95 AUS $
Literature/Schematics (1) - - Manufacturers Literature (Astor Service Data MF026, Feb 1972.)

Model page created by Brian Wilson. See "Data change" for further contributors.



All listed radios etc. from Astor (brand), Radio Corporation Pty., Ltd.; Melbourne
Here you find 843 models, 422 with images and 343 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.






Forum contributions about this model
Astor brand, Radio: Town & Country MF026
Threads: 1 | Posts: 2
Hits: 1359     Replies: 1
astor: CD256; MF026
Brian Wilson
22.Dec.12
  1

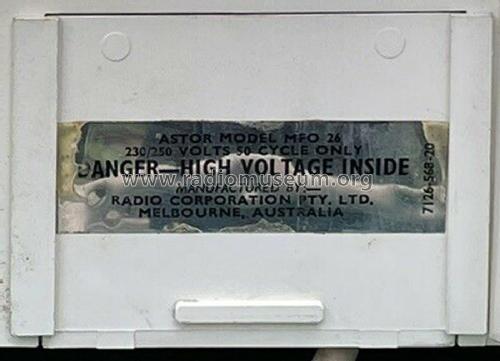

Whilst the Model Number on my example is shown on the case bottom as MF026 the designation on the slide that releases the power cord from the case is MFO 26. I.E MIKE FOXTROT ZERO TWO NONE versus MIKE FOXTROT OSCAR (space) TWO NINE.



Michael Watterson
22.Dec.12
  2

In the days of typewriters and manual typesetting and stencils on Drawing boards the I (small L) and 1 (one) also 0 (Zero) and O (Large o Oh) are often interchanged.
