For model A83A, Atlantic; Paris

Country:  France
Manufacturer / Brand:  Atlantic; Paris
Year: 1957 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: ECH81 EBF80 EBF80 EL84 EM81 EZ80
Main principle Super-Heterodyne (Super in general); ZF/IF 455 kHz
Wave bands Broadcast, Long Wave and 2 x Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 145; 220; 245 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 17 cm = 6.7 inch
Power out
from Radiomuseum.org Model: A83A - Atlantic; Paris
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 440 x 325 x 205 mm / 17.3 x 12.8 x 8.1 inch
Notes

4 gammes d'ondes: GO 150 à 315 kHz, PO 520 à 1604 kHz, OC 5,88 à 18,1 MHz, bande étalée 5,9 à 6,37 MHz. Clavier à 5 touches. Cadre à air blindé orientable.

Coffret bois, contreplaqué nover verni. Façade polystyrène, decor gris et or.

Équivalent au Médiator M38A.

Net weight (2.2 lb = 1 kg) 7 kg / 15 lb 6.7 oz (15.419 lb)

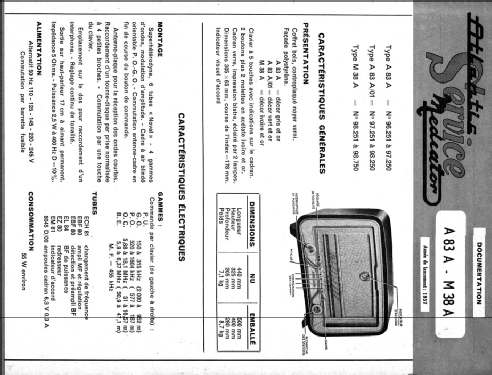

Mentioned in -- Original-techn. papers.

Model page created by Vitor Oliveira. See "Data change" for further contributors.
