711J Console, rounded front

711J ; Atwater Kent Mfg. Co (ID = 16814) Radio

711J ; Atwater Kent Mfg. Co (ID = 770225) Radio

711J ; Atwater Kent Mfg. Co (ID = 770226) Radio

711J ; Atwater Kent Mfg. Co (ID = 770227) Radio
711J ; Atwater Kent Mfg. Co (ID = 258313) Radio 711J ; Atwater Kent Mfg. Co (ID = 258348) Radio
711J ; Atwater Kent Mfg. Co (ID = 2445137) Radio 711J ; Atwater Kent Mfg. Co (ID = 2445139) Radio

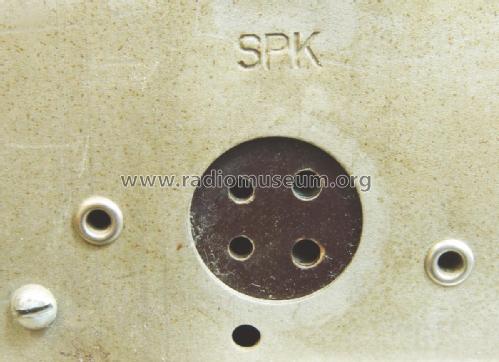

711J ; Atwater Kent Mfg. Co (ID = 2445140) Radio
Use red slider bar for more.
711J ; Atwater Kent Mfg. Co (ID = 258313) Radio
Atwater Kent Mfg. Co: 711J [Radio] ID = 258313 225x282
Select picture or schematic to display from thumbnails on the right and click for download.
For model 711J Console, rounded front, Atwater Kent Mfg. Co.; Philadelphia, USA

Country:  United States of America (USA)
Manufacturer / Brand:  Atwater Kent Mfg. Co.; Philadelphia, USA
Year: 1933/1934 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 11: 58 58 58 58 58 55 56 56 2A3 2A3 5Z3
Main principle Superhet with RF-stage; ZF/IF 472 kHz
Wave bands Broadcast plus more than 2 Short Wave bands.
Details
Power type and voltage Alternating Current supply (AC) / 110 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: 711J [Console, rounded front] - Atwater Kent Mfg. Co.;
Material Wooden case
Shape Console, Lowboy (legs < 50 %).
Dimensions (WHD) 27 x 44.25 x 17.5 inch / 686 x 1124 x 445 mm
Notes This model 711J cabinet as Lowboy on 6 short legs, rounded body with tiger wood and wood inlay, brass faceplate, was used also for model 808A and 310. According to "Slusser", the mentioned models are from 1933. For being able to tune in stations well, the model uses a "shadow tuning indicator" or "shadow indicator" (often called Shadowgraph as principle or brand) of 1200 ohms. See also 711R and 711T with the same 11 tube chassis but different cabinets.
Price in first year of sale 125.00 USD
External source of data E. Erb 3-907007-36-0
Source of data Collector's Guide to Antique Radios (6th edition)

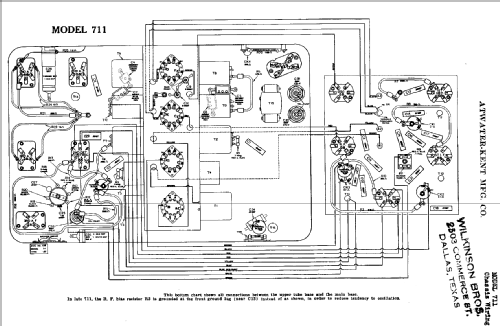

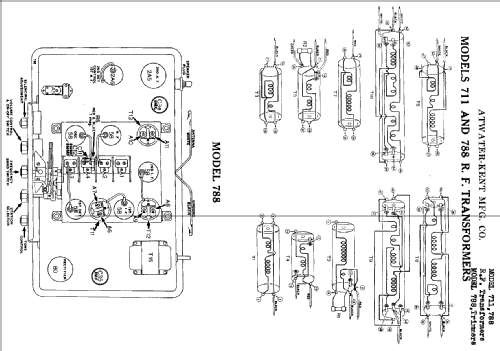

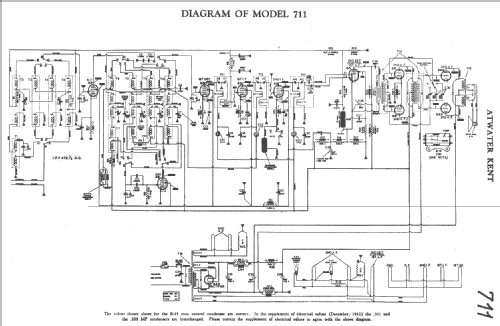

Circuit diagram reference Rider's Perpetual, Volume 4 = ca. 1934 and before
Literature/Schematics (1) Radio Retailing (Radio & Television R.) (October 1933 issue, page 19)
