E412

Atwater Kent Mfg. Co.; Philadelphia, USA

Data
Forum
Pictures
Collections

  • Year
  • 1935 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 33416

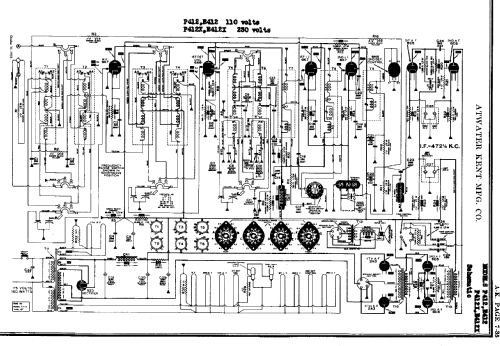

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 12
  • Main principle
  • Superhet with RF-stage; ZF/IF 472 kHz
  • Tuned circuits
  • 9 AM circuit(s)
  • Wave bands
  • Broadcast, Long Wave and Short Wave.
  • Details
  • Record Player (perh.Changer)
  • Power type and voltage
  • Alternating Current supply (AC) / 115 Volt
  • Loudspeaker
  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
  • Power out
  • 15 W (undistorted)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: E412 - Atwater Kent Mfg. Co.;
  • Shape
  • Console with any shape - in general
  • Notes

  • LW band (for Europe);

    Taken from advert: "This radio-phono cabinet houses the finest chassis Atwater Kent has ever built, the famous 412 chassis with 12 valves, 9 metal valves and 3 glass valves."

  • External source of data
  • Ernst Erb
  • Circuit diagram reference
  • Rider's Perpetual, Volume 7 = 1936 and before
  • Mentioned in
  • Folleto Atwater Kent 1936 en Español
