E765 E-765 Domestic

E765 E-765; Atwater Kent Mfg. Co (ID = 699534) Radio

E765 E-765; Atwater Kent Mfg. Co (ID = 1081168) Radio

E765 E-765; Atwater Kent Mfg. Co (ID = 1081172) Radio
E765 E-765; Atwater Kent Mfg. Co (ID = 1326169) Radio E765 E-765; Atwater Kent Mfg. Co (ID = 187936) Radio
E765 E-765; Atwater Kent Mfg. Co (ID = 187937) Radio E765 E-765; Atwater Kent Mfg. Co (ID = 1326171) Radio
E765 E-765; Atwater Kent Mfg. Co (ID = 1326172) Radio E765 E-765; Atwater Kent Mfg. Co (ID = 1705010) Radio
E765 E-765; Atwater Kent Mfg. Co (ID = 1705011) Radio E765 E-765; Atwater Kent Mfg. Co (ID = 2073787) Radio
E765 E-765; Atwater Kent Mfg. Co (ID = 2073788) Radio E765 E-765; Atwater Kent Mfg. Co (ID = 2073790) Radio
Use red slider bar for more.
E765 E-765; Atwater Kent Mfg. Co (ID = 1326169) Radio

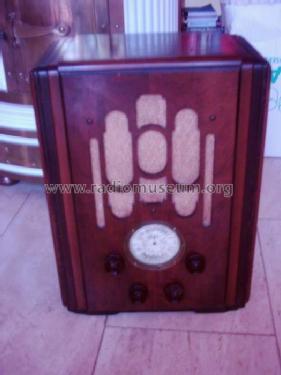

Atwater Kent Mfg. Co: E765 E-765 [Radio] ID = 1326169 604x726
Select picture or schematic to display from thumbnails on the right and click for download.
For model E765 E-765 Domestic, Atwater Kent Mfg. Co.; Philadelphia, USA:
Venditore internet

Country:  United States of America (USA)
Manufacturer / Brand:  Atwater Kent Mfg. Co.; Philadelphia, USA
Year: 1934 ? perfect model Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 6A7 6D6 75 42 80
Main principle Superheterodyne (common); ZF/IF 472 kHz
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage Alternating Current supply (AC) / 120 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: E765 E-765 [Domestic] - Atwater Kent Mfg. Co.;
Material Wooden case
Shape Tablemodel, Tombstone = decorative upright, not cathedral but can have rounded edges.
Dimensions (WHD) 360 x 470 x 210 mm / 14.2 x 18.5 x 8.3 inch
Notes

See also an export version E-765-X for 230 volt which was popular in Switzerland. There is a schematic done by Thali.

See also export version E765 Export for 220 volts with same tube lineup as the domestic version.

External source of data Ernst Erb

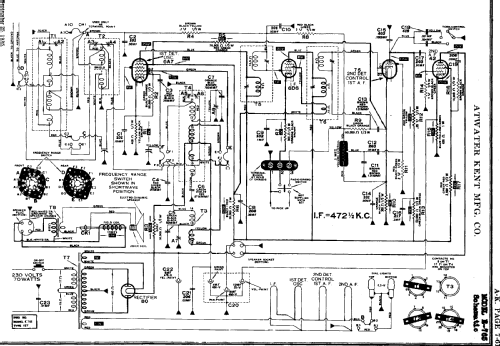

Circuit diagram reference Rider's Perpetual, Volume 7 = 1936 and before
