For model E-765-X 230volt, Atwater Kent Mfg. Co.; Philadelphia, USA:
EBAY Verkäufer; perfektworld Nr: 6606386036

Country:  United States of America (USA)
Manufacturer / Brand:  Atwater Kent Mfg. Co.; Philadelphia, USA
Year: 1935 perfect model Category: Broadcast Receiver - or past WW2 Tuner

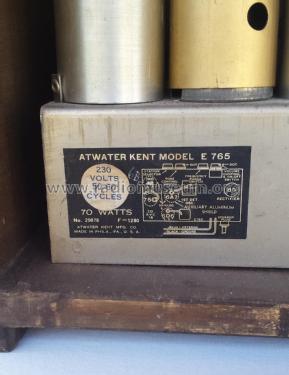

Valves / Tubes 5: 6A8 6K7 6Q7 6F6 80
Main principle Superheterodyne (common); ZF/IF 472 kHz
Wave bands Broadcast and Short Wave (SW).
Details

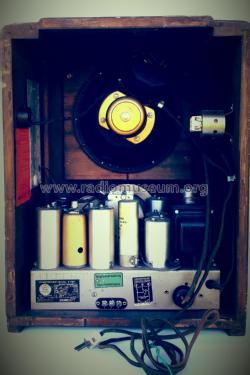

Power type and voltage Alternating Current supply (AC) / 230 Volt
Loudspeaker
Power out
from Radiomuseum.org Model: E-765-X [230volt] - Atwater Kent Mfg. Co.;
Dimensions (WHD) 360 x 470 x 210 mm / 14.2 x 18.5 x 8.3 inch
Notes

The model E-765-X can only be from 1935 or later because the tube 6K7 was released in 1935 (eraliest date). This is an export model of the domestic Atwater Kent E-765.

This is the export version for 230 volts with the tube line up from Thali, Switzerland: 6A8 6K7 6Q7 6F6 - and 80.

External source of data E. Erb 3-907007-36-0
Circuit diagram reference Beitman Radio Diagrams Vol. 7, 1947
Mentioned in Thali
