Telvar RER.9
Audar Inc.
- Country
- United States of America (USA)
- Manufacturer / Brand
- Audar Inc.
- Year
- 1947
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 33458
SAMS

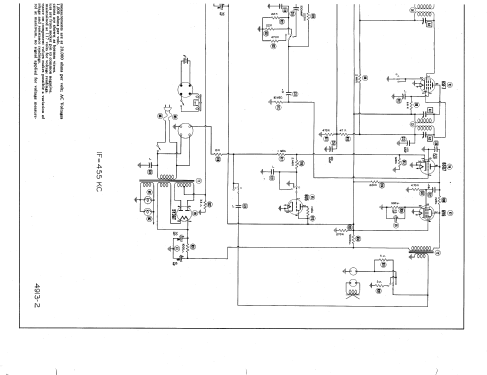

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 8
- Main principle
- Superhet with RF-stage; ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 7 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Details
- Other Combination - see Notes
- Power type and voltage
- Alternating Current supply (AC) / 117 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Material
- Wooden case
- from Radiomuseum.org
- Model: Telvar RER.9 - Audar Inc.
- Shape
- Tablemodel, low profile (big size).
- Notes
- The model Telvar RER.9 (Rider shows as RER-9) from Audar Inc. is an AC operated combination Phono-Recorder-Radio. It has a 6" x 9" PM elliptical speaker with a tweeter integrated.
- External source of data
- Ernst Erb
- Source of data
- Collector's Guide to Antique Radios 4. Edition
- Circuit diagram reference
- Rider's Perpetual, Volume 18 = 1949 and before
- Literature/Schematics (1)

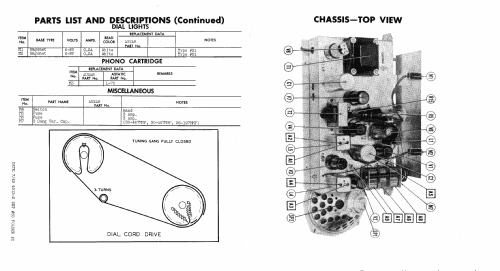

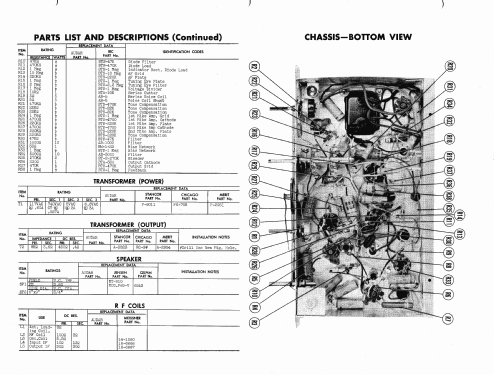

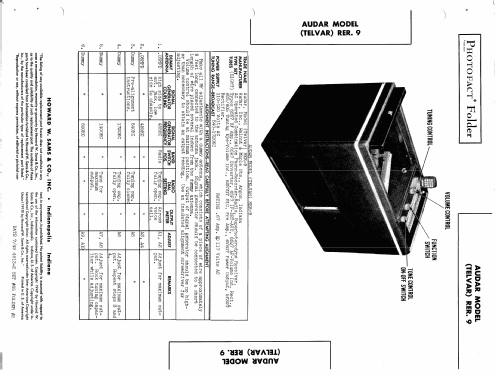

- Photofact Folder, Howard W. SAMS (Date 7-49 4913-2, set 65, folder 2)
