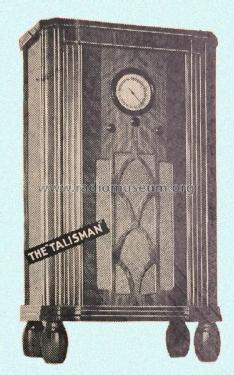

G.E. Talisman 474A

Country:  Australia
Manufacturer / Brand:  Australian General Electric (GE Company Australia Ltd., Associated, AGE, Bandmaster, Hotpoint), Sydney
alternative name

General Electric Company of Australia Ltd.
Year: 1934 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: 6D6 6D6 6A7 6D6 6B7 42 80
schematic requested
Main principle Superhet with RF-stage; ZF/IF 465 kHz; 2 AF stage(s)
Wave bands Broadcast plus 2 Short Wave bands.
Details
Power type and voltage Alternating Current supply (AC) / 240 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: G.E. Talisman 474A - Australian General Electric GE
Material Wooden case
Shape Console, Lowboy (legs < 50 %).
Dimensions (WHD) 22 x 39 x 14.5 inch / 559 x 991 x 368 mm
Notes Two RF amplifiers used only on highest band 16.7 to 37.5 m. Otherwise only one is used. This model uses the same chassis as the AWA Radiola model 240.
Price in first year of sale 45.00 Aus£
Mentioned in Radio & Electrical Merchant 31/8/34 P18.

Model page created by Stuart Irwin. See "Data change" for further contributors.
