Hotpoint P64MEQ

Hotpoint P64MEQ; Australian General (ID = 2322900) Radio Hotpoint P64MEQ; Australian General (ID = 2322901) Radio
Hotpoint P64MEQ; Australian General (ID = 2322902) Radio Hotpoint P64MEQ; Australian General (ID = 2322903) Radio
Use red slider bar for more.

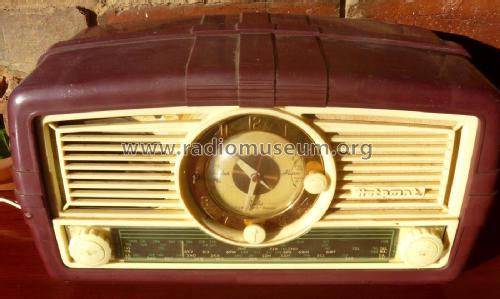

Hotpoint P64MEQ; Australian General (ID = 2322900) Radio
Australian General: Hotpoint P64MEQ [Radio] ID = 2322900 1400x839
Select picture or schematic to display from thumbnails on the right and click for download.
For model Hotpoint P64MEQ, Australian General Electric (GE Company Australia Ltd., Associated, AGE, Bandmaster, Hotpoint), Sydney:
From ebay au seller toltolkid. Item #253962843521

Country:  Australia
Manufacturer / Brand:  Australian General Electric (GE Company Australia Ltd., Associated, AGE, Bandmaster, Hotpoint), Sydney
alternative name

General Electric Company of Australia Ltd.
Year: 1955 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: 6BE6 6AU6 6BV7 6X4
Main principle Super-Heterodyne (Super in general); ZF/IF 455 kHz
Wave bands Broadcast only (MW).
Details
Power type and voltage Alternating Current supply (AC) / 200-260 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Hotpoint P64MEQ - Australian General Electric GE
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel with Clock ((Alarm-) Clock Radio).
Notes

Mantel clock radio.

Rebadged AWA 469MA. Similar to Hotpoint model P64MEC except that a ferrite rod aerial is used.

Colours available in Burgundy, Green, Grey & Ivory.

Price in first year of sale 32.55 AUS £
Literature/Schematics (1) - - Manufacturers Literature (AGE/AEI Hotpoint Technical Information & Service Data.)
Literature/Schematics (2) J.R. Publications Radio Service Handbook (R.V. Series Vol. 1, 1963, Page A102.)

Model page created by Martin Kent. See "Data change" for further contributors.
