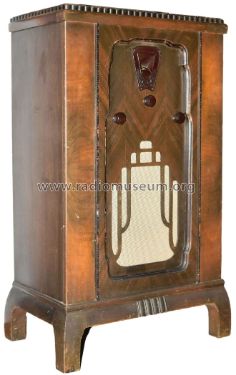

Model 66E

Model 66E ; Australian General (ID = 2151458) Radio
Use red slider bar for more.
Model 66E ; Australian General (ID = 2151458) Radio
Australian General: Model 66E [Radio] ID = 2151458 846x1497
Select picture or schematic to display from thumbnails on the right and click for download.
For model Model 66E, Australian General Electric (GE Company Australia Ltd., Associated, AGE, Bandmaster, Hotpoint), Sydney:
Advert from The West Australian (WA) 12 August 1932, Page 6.

Country:  Australia
Manufacturer / Brand:  Australian General Electric (GE Company Australia Ltd., Associated, AGE, Bandmaster, Hotpoint), Sydney
alternative name

General Electric Company of Australia Ltd.
Year: 1932 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: 235 235 235 224A 247 280
Main principle TRF (Tuned-Radio-Frequency but use of regeneration unknown)
Wave bands Broadcast only (MW).
Details
Power type and voltage Alternating Current supply (AC) / 200-260 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: Model 66E - Australian General Electric GE
Material Wooden case
Shape Console with any shape - in general
Notes

Most likely based on the AWA Radiola 55E model.

Price in first year of sale 37.50 AUS £
Mentioned in -- Original prospect or advert (The Sun (Sydney), 6/3/1932, Page 9.)

Model page created by Martin Kent. See "Data change" for further contributors.
