Hotpoint-Bandmaster H54ME

Hotpoint-Bandmaster H54ME; Australian General (ID = 2183566) Radio Hotpoint-Bandmaster H54ME; Australian General (ID = 2183567) Radio
Use red slider bar for more.
Hotpoint-Bandmaster H54ME; Australian General (ID = 2183566) Radio

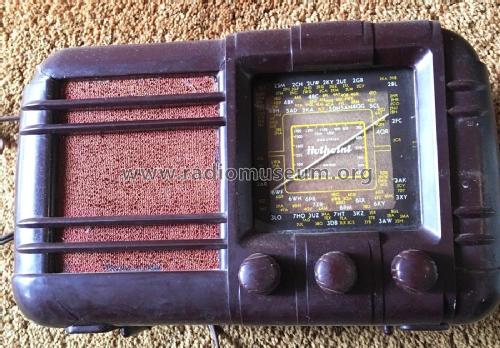

Australian General: Hotpoint-Bandmaster H54ME [Radio] ID = 2183566 1400x975
Select picture or schematic to display from thumbnails on the right and click for download.
For model Hotpoint-Bandmaster H54ME, Australian General Electric (GE Company Australia Ltd., Associated, AGE, Bandmaster, Hotpoint), Sydney:
From eBay au seller sueben01. Item #332472433648.

Country:  Australia
Manufacturer / Brand:  Australian General Electric (GE Company Australia Ltd., Associated, AGE, Bandmaster, Hotpoint), Sydney
alternative name

General Electric Company of Australia Ltd.
Year: 1949 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: 6A8G 6G8G 6V6GT 6X5GT
Main principle Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s); Reflex
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Alternating Current supply (AC) / 200-230; 230-260 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 5 inch = 12.7 cm
Power out 3 W (undistorted)
from Radiomuseum.org Model: Hotpoint-Bandmaster H54ME - Australian General Electric GE
Material Moulded (Bakelite or Plastics)
Shape Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only).
Dimensions (WHD) 12.75 x 8.5 x 6.75 inch / 324 x 216 x 171 mm
Notes

Circuit based on AWA model 517MZ. The only difference in the circuit is the rectifier valve & tone control.

Ivory cabinet 10/- extra.

Net weight (2.2 lb = 1 kg) 16 lb (16 lb 0 oz) / 7.264 kg
Price in first year of sale 18.90 AUS £
Circuit diagram reference Australian Official Radio Service Manual Vol. VIII
Literature/Schematics (1) Australian Official Radio Service Manual AORSM (Volume 8, 1950, Page 160.)

Model page created by Stuart Irwin. See "Data change" for further contributors.
