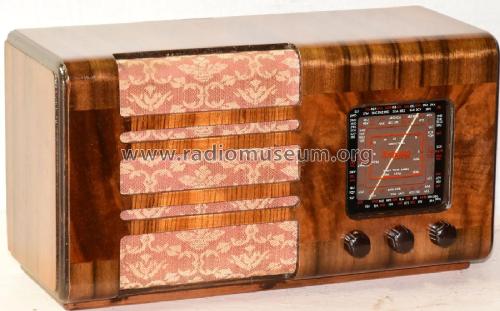

Hotpoint-Bandmaster K55DE

Country:  Australia
Manufacturer / Brand:  Australian General Electric (GE Company Australia Ltd., Associated, AGE, Bandmaster, Hotpoint), Sydney
alternative name

General Electric Company of Australia Ltd.
Year: 1947 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 6J8G 6SK7GT 6SQ7GT 6V6GT 6X5GT
Main principle Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage Alternating Current supply (AC) / 200-230; 230-260 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: Hotpoint-Bandmaster K55DE - Australian General Electric GE
Material Wooden case
Shape Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only).
Notes This model uses the same chassis as the AWA Radiola model 510M.
Price in first year of sale 30.00 Aus£
Circuit diagram reference Australian Official Radio Service Manual Vol. VI
Literature/Schematics (1) Mingay's Radio Diagram & I.F. Index

Model page created by Stuart Irwin. See "Data change" for further contributors.
