Hotpoint-Bandmaster N55DG

Hotpoint-Bandmaster N55DG; Australian General (ID = 2411287) Radio
Use red slider bar for more.
Hotpoint-Bandmaster N55DG; Australian General (ID = 2411287) Radio
Australian General: Hotpoint-Bandmaster N55DG [Radio] ID = 2411287 1400x1050
Select picture or schematic to display from thumbnails on the right and click for download.
For model Hotpoint-Bandmaster N55DG, Australian General Electric (GE Company Australia Ltd., Associated, AGE, Bandmaster, Hotpoint), Sydney:

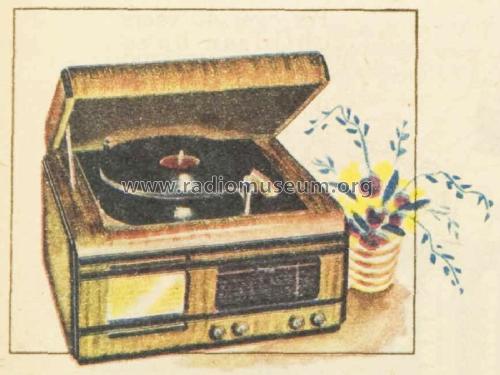

The Australian Women's Weekly, 14/2/48, Page 48. Sourced and downloaded from Trove - National Library of Australia.

Country:  Australia
Manufacturer / Brand:  Australian General Electric (GE Company Australia Ltd., Associated, AGE, Bandmaster, Hotpoint), Sydney
alternative name

General Electric Company of Australia Ltd.
Year: 1947 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 6J8G 6SK7GT 6SQ7GT 6V6GT 6X5GT
Main principle Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast and Short Wave (SW).
Details Record Player (not changer)
Power type and voltage Alternating Current supply (AC) / 200-230; 230-260 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Hotpoint-Bandmaster N55DG - Australian General Electric GE
Material Wooden case
Shape Tablemodel, low profile (big size).
Notes This model uses the same chassis as the AWA Radiola model 801G.
Circuit diagram reference Australian Official Radio Service Manual Vol. VI
Literature/Schematics (1) Mingay's Radio Diagram & I.F. Index

Model page created by Stuart Irwin. See "Data change" for further contributors.
