Hotpoint V55DE

Hotpoint V55DE; Australian General (ID = 1664645) Radio
Use red slider bar for more.
Hotpoint V55DE; Australian General (ID = 1664645) Radio

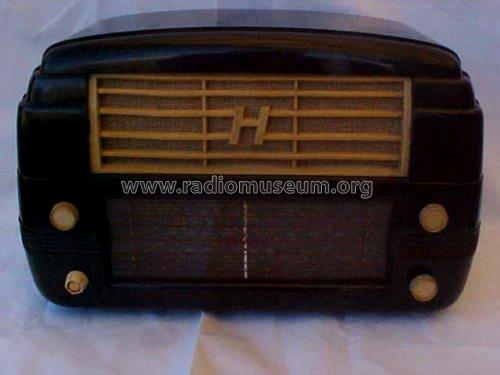

Australian General: Hotpoint V55DE [Radio] ID = 1664645 500x375
Select picture or schematic to display from thumbnails on the right and click for download.
For model Hotpoint V55DE, Australian General Electric (GE Company Australia Ltd., Associated, AGE, Bandmaster, Hotpoint), Sydney:
Ebay # 171340999792 Seller: kab191

Country:  Australia
Manufacturer / Brand:  Australian General Electric (GE Company Australia Ltd., Associated, AGE, Bandmaster, Hotpoint), Sydney
alternative name

General Electric Company of Australia Ltd.
Year: 1950 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: X61M 6AR7GT 6AU6 6V6GT 5Y3GT
Main principle Super-Heterodyne (Super in general); ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage Alternating Current supply (AC) / 200-230; 230-260 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: Hotpoint V55DE - Australian General Electric GE
Material Moulded (Bakelite or Plastics)
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 400 x 250 x 240 mm / 15.7 x 9.8 x 9.4 inch
Notes This model uses the same chassis as the AWA Radiola model 528MA. The speaker is an eliptical type, 9 by 6 inches.
Circuit diagram reference Australian Official Radio Service Manual Vol. IX

Model page created by Stuart Irwin. See "Data change" for further contributors.
