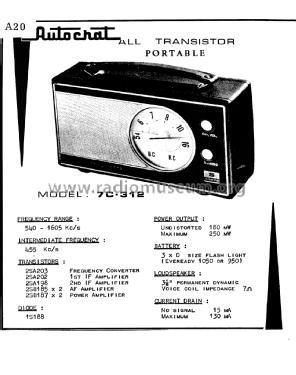

Autocrat Sanyo All Transistor Portable 7C-312
Autocrat Radio Ltd.; Auckland
- Country
- New Zealand-Aotearoa
- Manufacturer / Brand
- Autocrat Radio Ltd.; Auckland
- Year
- 1966
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 351311
NZVRS (with permission).

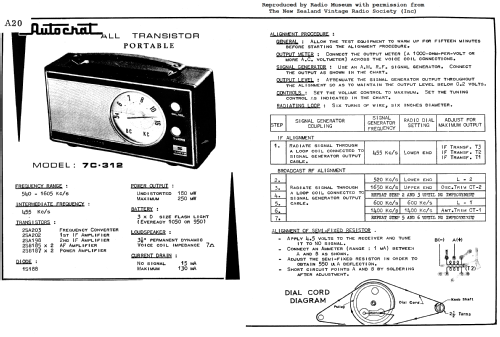

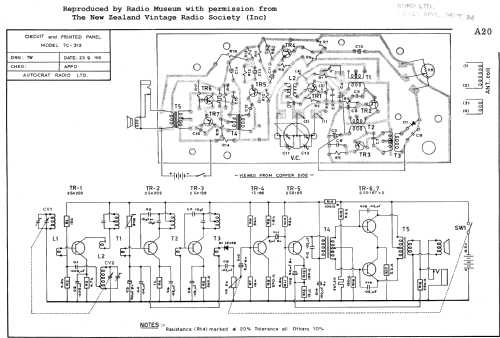

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 7
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 3 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Dry Batteries / D: 3 x 1.5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 3.12 inch = 7.9 cm
- Power out
- 0.18 W (0.25 W max.)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Autocrat Sanyo All Transistor Portable 7C-312 - Autocrat Radio Ltd.; Auckland
- Shape
- Very small Portable or Pocket-Set (Handheld) < 8 inch.
- Notes
-
Autocrat Sanyo 7C-312 All Transistor Portable broadcast (MW).
See also Sanyo 7C-312.
- Author
- Model page created by Brian Stevens. See "Data change" for further contributors.
