Champion 42

Champion 42; Autophon AG inkl. (ID = 264471) Radio
Champion 42; Autophon AG inkl. (ID = 264098) Radio Champion 42; Autophon AG inkl. (ID = 264100) Radio
Champion 42; Autophon AG inkl. (ID = 264102) Radio Champion 42; Autophon AG inkl. (ID = 264101) Radio
Champion 42; Autophon AG inkl. (ID = 264103) Radio Champion 42; Autophon AG inkl. (ID = 359677) Radio
Champion 42; Autophon AG inkl. (ID = 359678) Radio Champion 42; Autophon AG inkl. (ID = 359680) Radio
Use red slider bar for more.
Champion 42; Autophon AG inkl. (ID = 264098) Radio

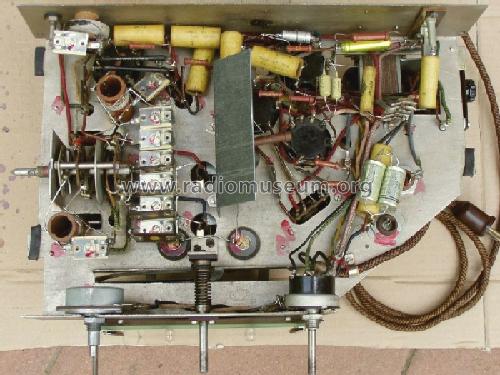

Autophon AG inkl.: Champion 42 [Radio] ID = 264098 933x577
Select picture or schematic to display from thumbnails on the right and click for download.
For model Champion 42, Autophon AG (inkl. Téléphonie SA); Solothurn

Country:  Switzerland
Manufacturer / Brand:  Autophon AG (inkl. Téléphonie SA); Solothurn
Year: 1942/1943 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: ECH3 EBF2 EL3 AZ1
Main principle Super-Heterodyne (Super in general); ZF/IF 471 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110, 125, 145, 220, 250 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: Champion 42 - Autophon AG inkl. Téléphonie
Material Wooden case
Dimensions (WHD) 497 x 282 x 252 mm / 19.6 x 11.1 x 9.9 inch
Notes 2000/RD6002-1
Collectors' prices
External source of data E. Erb 3-907007-36-0
Source of data Radiokatalog Band 2, Ernst Erb
Circuit diagram reference Thali-Schemasammlung und Tungsram-Röhrenbestückung.


All listed radios etc. from Autophon AG (inkl. Téléphonie SA); Solothurn
Here you find 239 models, 178 with images and 146 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
