VHF-Empfänger E-77

VHF-Empfänger E-77; Autophon AG inkl. (ID = 235932) Commercial Re VHF-Empfänger E-77; Autophon AG inkl. (ID = 235933) Commercial Re
VHF-Empfänger E-77; Autophon AG inkl. (ID = 306312) Commercial Re VHF-Empfänger E-77; Autophon AG inkl. (ID = 306313) Commercial Re
Use red slider bar for more.
VHF-Empfänger E-77; Autophon AG inkl. (ID = 235932) Commercial Re
Autophon AG inkl.: VHF-Empfänger E-77 [Commercial Re] ID = 235932 933x561
Select picture or schematic to display from thumbnails on the right and click for download.
For model VHF-Empfänger E-77, Autophon AG (inkl. Téléphonie SA); Solothurn:

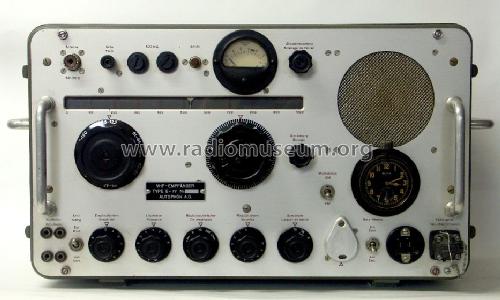

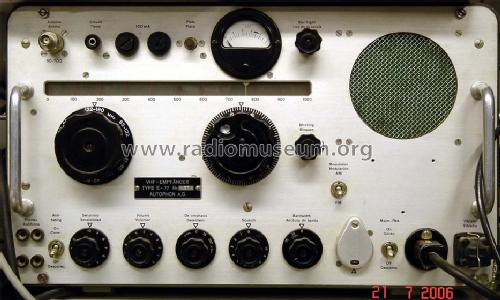

E77 Front Panel

Country:  Switzerland
Manufacturer / Brand:  Autophon AG (inkl. Téléphonie SA); Solothurn
Year: 1955 Category: Commercial Receiver (may include amateur bands)
Valves / Tubes 14:
schematic requested
Main principle Superheterodyne (common)
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Alternating Current supply (AC) / 110; 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 9.5 cm = 3.7 inch
Power out
from Radiomuseum.org Model: VHF-Empfänger E-77 - Autophon AG inkl. Téléphonie
Material Metal case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 510 x 270 x 260 mm / 20.1 x 10.6 x 10.2 inch
Notes

AM/FM VHF Communications Receiver. 20 - 180 MHz in 6 bands. Civil version of the E-628 exported to Spain and Colombia and used by Swiss PTT.

Zivilversion des militärischen E-628 für Export nach Spanien und Kolumbien und Einsatz beim Schweizer PTT.

Model page created by Juhani Makivuoti † 21.09.13. See "Data change" for further contributors.



All listed radios etc. from Autophon AG (inkl. Téléphonie SA); Solothurn
Here you find 239 models, 184 with images and 147 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.






Forum contributions about this model
Autophon AG inkl.: VHF-Empfänger E-77
Threads: 1 | Posts: 2
Hits: 2272     Replies: 1
autophon: E77 (E 77);
Juhani Makivuoti † 21.09.13
22.Jul.06
  1 Thanks to Herr A. Küffer who has indicated that Autophon E77 receiver is actually military marking of the same radio E628.

J. Makivuoti
Martin Bösch
22.Jul.06
  2 According to R. J. Ritter, the Autophon E-77 has been exported to Spain and Colombia and has been used also by Swiss PTT (Post Telephone Telegraph authorities), it is the technically identical civilian version of the military model E-628.

Gemäss R. J. Ritter, Fernmeldeanlagen der Schweiz. Armee handelt es sich beim E77 um die baugleiche zivile Version des E-628, exportiert nach Spanien und Kolumbien und zivil eingesetzt bei den Schweizer PTT.

You might use the schematics already uploaded for the E-628, hope that helps Martin
