• Country
• Switzerland

• Manufacturer / Brand
• Autophon AG (inkl. Téléphonie SA); Solothurn

• Year
• 1947/1948

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 11394

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• UCH41 UF41 UAF41 UL41 UY41

• Main principle
• Superheterodyne (common); ZF/IF 471 kHz

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• AC/DC-set / 110-250 Volt

• Loudspeaker
• Permanent or electro-dynamic (moving coil), system not known yet. / Ø 17 cm = 6.7 inch

• Material
• Bakelite case

• from Radiomuseum.org

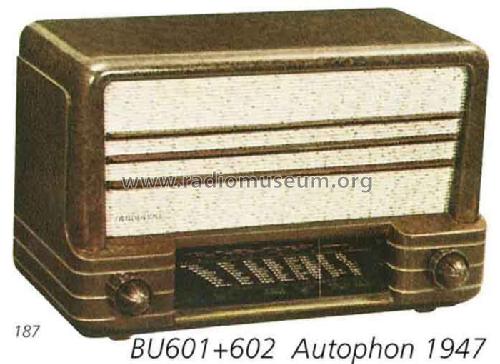

• Model: Exportmod. BU602 - Autophon AG inkl. Téléphonie

• Dimensions (WHD)
• 470 x 300 x 260 mm / 18.5 x 11.8 x 10.2 inch

• Notes
• 500/20332b+c*

• External source of data
• E. Erb 3-907007-36-0

• Source of data
• Radiokatalog Band 2, Ernst Erb

• Circuit diagram reference
• Die Tungsram-Tabellen führen das Modell auf.

• Picture reference
• Das Modell ist im «Radiokatalog» (Erb) abgebildet.
