- Country
- Switzerland
- Manufacturer / Brand
- Autophon AG (inkl. Téléphonie SA); Solothurn
- Year
- 1952/1953
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 11418
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common); ZF/IF 471 kHz
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Power type and voltage
- Alternating Current supply (AC) / 150/220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 17 cm = 6.7 inch
- Material
- Wooden case
- from Radiomuseum.org

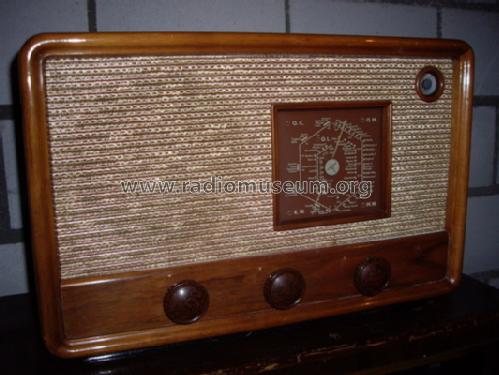

- Model: Rigi - Autophon AG inkl. Téléphonie
- Dimensions (WHD)
- 420 x 280 x 200 mm / 16.5 x 11 x 7.9 inch
- Notes
- 500/20643*
- Net weight (2.2 lb = 1 kg)
- 6.8 kg / 14 lb 15.6 oz (14.978 lb)
- External source of data
- E. Erb 3-907007-36-0
- Source of data
- Radiokatalog Band 2, Ernst Erb
- Picture reference
- Das Modell ist im «Radiokatalog» (Erb) abgebildet.
