RA7/F

RA7/F; Autovox SPA; Roma (ID = 164883) Car Radio

RA7/F; Autovox SPA; Roma (ID = 505786) Car Radio

RA7/F; Autovox SPA; Roma (ID = 506123) Car Radio
RA7/F; Autovox SPA; Roma (ID = 2638596) Car Radio RA7/F; Autovox SPA; Roma (ID = 2638595) Car Radio
RA7/F; Autovox SPA; Roma (ID = 2638594) Car Radio RA7/F; Autovox SPA; Roma (ID = 1802525) Car Radio
RA7/F; Autovox SPA; Roma (ID = 214509) Car Radio RA7/F; Autovox SPA; Roma (ID = 832612) Car Radio
Use red slider bar for more.
RA7/F; Autovox SPA; Roma (ID = 2638596) Car Radio
Autovox SPA; Roma: RA7/F [Car Radio] ID = 2638596 1400x563
Select picture or schematic to display from thumbnails on the right and click for download.
For model RA7/F, Autovox SPA; Roma

Country:  Italy
Manufacturer / Brand:  Autovox SPA; Roma
Year: 1951–1953 Category: Car Radio, perhaps also + sound player/recorder
Valves / Tubes 6: 6BA6 6BE6 6BA6 6AT6 6AQ5 6X4
Main principle Superheterodyne (common); ZF/IF 455 kHz
Wave bands Broadcast plus more than 2 Short Wave bands.
Details
Power type and voltage Storage Battery for all (e.g. for car radios and amateur radios) / 6/12 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: RA7/F - Autovox SPA; Roma
Material Metal case
Dimensions (WHD) 124 x 275 x 140 inch / 3150 x 6985 x 3556 mm
Notes Alimentazione da batteria con vibratore. Le dimensioni e la foto riguardano il solo modulo di sintonia (modulo alimentazione separato).

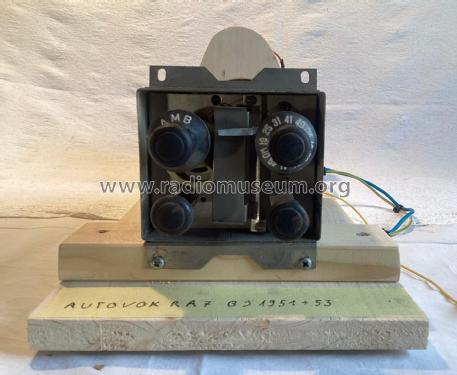

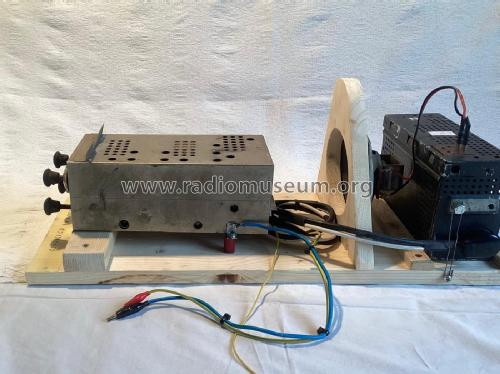

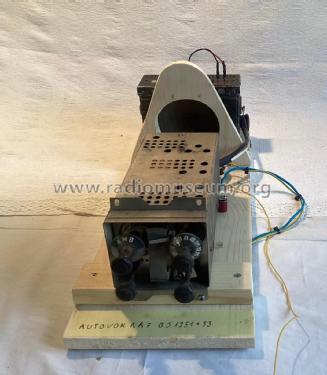

Built-in vibrator for battery use. Photo and size refer to the tuning unit only (there was a separate power unit).
Source of data Guida Pratica Antique Radio IV (2001)
Literature/Schematics (1) Schemi di apparecchi radio ( Ravalico 1953 ) (pag. 21)

Model page created by Alessandro De Poi. See "Data change" for further contributors.



All listed radios etc. from Autovox SPA; Roma
Here you find 268 models, 170 with images and 153 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.






Forum contributions about this model
Autovox SPA; Roma: RA7/F
Threads: 1 | Posts: 1
Hits: 1917     Replies: 0
autovox: Sconosciuto (Unknown)
Emilio Ciardiello
05.Oct.08
  1

Hello,

the module in the picture should be the tuning unit of the RA7 car radio, for which the schematic diagram is already available. Please check with the following mounting drawing referring to the installation on an old Fiat 1400.

Regards,

Emilio



Attachments


Autovox SPA; Roma: RA7/F
End of forum contributions about this model
