RA9 6V

RA9; Autovox SPA; Roma (ID = 174533) Car Radio

RA9; Autovox SPA; Roma (ID = 2206447) Car Radio
Use red slider bar for more.
RA9; Autovox SPA; Roma (ID = 174533) Car Radio

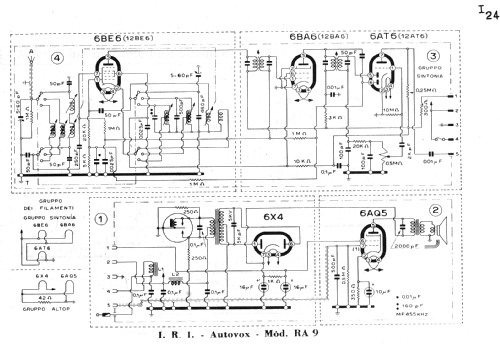

Select picture or schematic to display from thumbnails on the right and click for download.

Country:  Italy
Manufacturer / Brand:  Autovox SPA; Roma
Year: 1950 Category: Car Radio, perhaps also + sound player/recorder
Valves / Tubes 5: 6BE6 6BA6 6AT6 6X4 6AQ5
Main principle Superheterodyne (common); ZF/IF 455 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Storage Battery for all (e.g. for car radios and amateur radios) / 6 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 11 cm = 4.3 inch
Power out
from Radiomuseum.org Model: RA9 [6V] - Autovox SPA; Roma
Material Metal case
Shape Chassis only or for «building in»
Dimensions (WHD) 180 x 100 x 260 mm / 7.1 x 3.9 x 10.2 inch
Notes

Onde Medie, Onde Corte 49m, Onde Corte 25m.
Controllo di tono
Sintonia ad induttori variabili.
Alimentazione da batteria. Funzionamento con vibratore elettromeccanico.
La 6AT6 è comunemente sostituita con la 6AV6.

Built-in vibrator for battery use.

Net weight (2.2 lb = 1 kg) 4.2 kg / 9 lb 4 oz (9.251 lb)
Price in first year of sale 55'000.00 ITL
Source of data Guida Pratica Antique Radio III (2000)
Mentioned in Guida Pratica Antique Radio IV (2001)
Literature/Schematics (1) Riparazioni - Scuola Radio Elettra

Model page created by Alessandro De Poi. See "Data change" for further contributors.
