Raid RA331 (RM331)
Autovox SPA; Roma
- Country
- Italy
- Manufacturer / Brand
- Autovox SPA; Roma
- Year
- 1971
- Category
- Car Radio, perhaps also + sound player/recorder
- Radiomuseum.org ID
- 83128
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 9
- Semiconductors
- BF194 BF195 BF195 BF194 BC209 AC128 AC187 or. AC181 AC188 or. AC180 PTO OA91 or. SFD108 OA91 or. SFD108 AA119 or. SFD115 ZF6,2
- Main principle
- Superhet with RF-stage; ZF/IF 455 kHz
- Tuned circuits
- 7 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Material
- Metal case
- from Radiomuseum.org

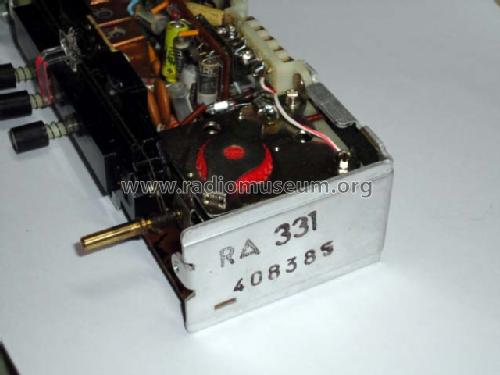

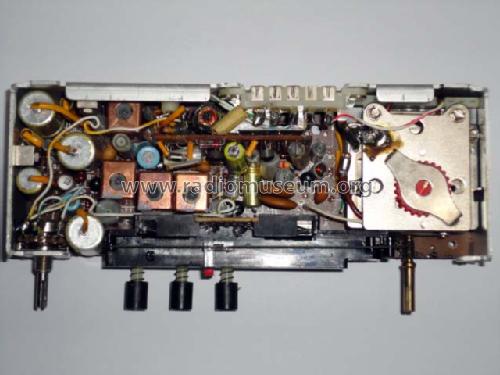

- Model: Raid RA331 - Autovox SPA; Roma
- Shape
- Chassis only or for «building in»
- Dimensions (WHD)
- 165 x 38 x 60 mm / 6.5 x 1.5 x 2.4 inch
- Notes
-
Autoradio per Fiat 128 e 127. La versione estraibile era denominata RM331 (prezzo 1971: 37.500 ITL)
Cinque pulsanti di comando: Pulsante 1 On-Off, Pulsante 2 Aumenta luminosità scala parlante, Pulsante 3 Controllo tono, i pulsanti 4 e 5 sono finti non si possono premere.Car radio for Fiat 128 and 127.
- Price in first year of sale
- 40,500.00 ITL
- Mentioned in
- Quattroruote - Febbraio e Marzo 1971
- Literature/Schematics (1)
- -- Original prospect or advert (Autovox Autoradio/giranastri - listino generale 1971)
- Author
- Model page created by Alessandro De Poi. See "Data change" for further contributors.
