R-114D {Р-114Д}

R-114D {Р-114Д}; B-8865 V8865 post (ID = 568583) Military R-114D {Р-114Д}; B-8865 V8865 post (ID = 568584) Military
R-114D {Р-114Д}; B-8865 V8865 post (ID = 568586) Military R-114D {Р-114Д}; B-8865 V8865 post (ID = 568587) Military
R-114D {Р-114Д}; B-8865 V8865 post (ID = 568590) Military R-114D {Р-114Д}; B-8865 V8865 post (ID = 568592) Military
R-114D {Р-114Д}; B-8865 V8865 post (ID = 568593) Military R-114D {Р-114Д}; B-8865 V8865 post (ID = 568594) Military
R-114D {Р-114Д}; B-8865 V8865 post (ID = 1405102) Military R-114D {Р-114Д}; B-8865 V8865 post (ID = 1405103) Military
Use red slider bar for more.

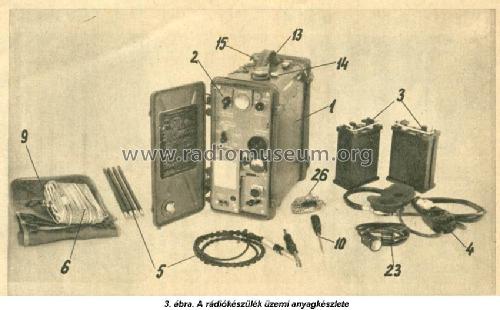

R-114D {Р-114Д}; B-8865 V8865 post (ID = 568583) Military
B-8865 V8865 post: R-114D {Р-114Д} [Military] ID = 568583 933x600
Select picture or schematic to display from thumbnails on the right and click for download.
For model R-114D {Р-114Д}, B-8865 (V8865) post box Nr. plant, Voronezh. Soviet Union (SU) see Voronezh Elektrosignal Radio Works:
Az R105D, R108D, R109D, R114D Rádiókészülékek Kezelési Utasítása, H-Militärverlag 1963,Orig. SU1959

Country:  Soviet Union
Manufacturer / Brand:  B-8865 (V8865) post box Nr. plant, Voronezh. Soviet Union (SU) see Voronezh Elektrosignal Radio Works
Year: 1959–1966 ? Category: Military Equipment
Valves / Tubes 11: 4Ж1Л 4Ж1Л 4П1Л 2Ж27Л 2Ж27Л 2Ж27Л 2Ж27Л 2Ж27Л 2Ж27Л 2Ж27Л 2Ж27Л
Main principle Superhet with RF-stage
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Storage Battery for all (e.g. for car radios and amateur radios) / 2 × 2,4 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: R-114D {Р-114Д} - B-8865 V8865 post box Nr.
Material Metal case
Shape Miscellaneous shapes - described under notes.
Dimensions (WHD) 365 x 385 x 230 mm / 14.4 x 15.2 x 9.1 inch
Notes Soviet (& Warzaw Pact) army backpack FM-transceiver for infantry use, range 20.0 - 26.0 MHz, Pout 1.3 watts RF. Needs head- or handset. Needs two batteries 2NKN24. Many different accessories. The tubes are more than once present.
/>
The guest Achim Schmidt has told us by the contact form: "The models R-105D, R-108D, R-109D and R-114D are equal except that the frequency range is different: R-105 D = 36,0...46,1 MHz; R-108 D = 28,0...36,5 MHz; R-109 D = 21,5...28,5 MHz and R-114 D = 20,0...26,0 MHz. The equipment can be 0.5 m under water for max. 3 minutes without any harm. They are for F3 simplex and are military portable radio equipment similar to the German Torn E.b. from WW2. Torn is a short wording for Tornister-Empfänger or Tornisterfunkgerät.
Net weight (2.2 lb = 1 kg) 21 kg / 46 lb 4.1 oz (46.256 lb)
Source of data - - Manufacturers Literature
Literature/Schematics (1) Az R105D, R108D, R109D, R114D Rádiókészülékek Kezelési Utasítása, H-Militärverlag 1963,Orig. SU1959

Model page created by Sandor Selyem-Tóth. See "Data change" for further contributors.
