• Year
  • 1963
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 136357

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 6
  • Main principle
  • Superheterodyne (common); ZF/IF 470 kHz; 2 AF stage(s)
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast (MW) and Long Wave.
  • Power type and voltage
  • Dry Batteries / 9 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • from Radiomuseum.org
  • Model: M276 - Baird brand - Baird Television
  • Notes

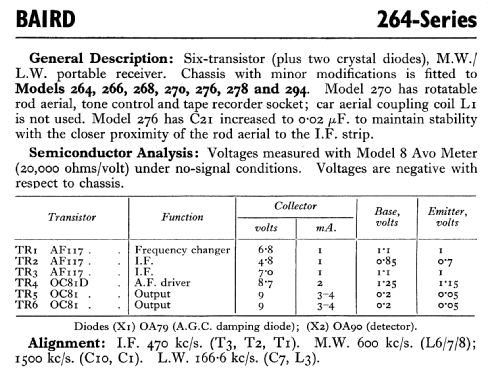

  • Slightly modified version of 264. Same basic circuit/PCB used in models 266, 268, 270, 278 & 294. Price £11.11s.0d. including tax.

    Made by Radio Rentals.

  • Price in first year of sale
  • 12.00 GBP
  • Source of data
  • -- Original-techn. papers.
  • Literature/Schematics (1)
  • Paul Stennings CD, vol 2.
  • Author
  • Model page created by Keith Staines. See "Data change" for further contributors.
