Belcanto

Belcanto ; Bang & Olufsen B&O; (ID = 1062863) Microphone/PU
Belcanto ; Bang & Olufsen B&O; (ID = 1062862) Microphone/PU
Use red slider bar for more.
Belcanto ; Bang & Olufsen B&O; (ID = 1062862) Microphone/PU

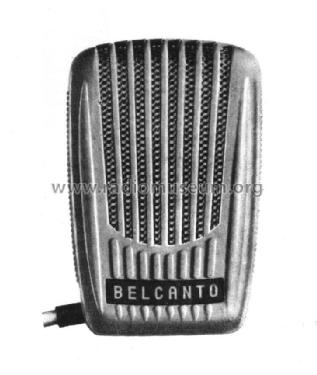

Bang & Olufsen B&O;: Belcanto [Microphone/PU] ID = 1062862 726x858
Select picture or schematic to display from thumbnails on the right and click for download.
For model Belcanto, Bang & Olufsen (B&O); Struer:
Servicemanual

Country:  Denmark
Manufacturer / Brand:  Bang & Olufsen (B&O); Struer
Brand

B&O
Year: 1965 Category: Microphone or Pick-up element
Wave bands - without
Details
Power type and voltage No Power needed
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: Belcanto - Bang & Olufsen B&O; Struer
Material Moulded (Bakelite or Plastics)
Dimensions (WHD) 52 x 80 x 32 mm / 2 x 3.1 x 1.3 inch
Notes Dynamisches Tauchspulenmikrophon, Impedanz 200 Ohm bzw. 50 kOhm umschaltbar.
Source of data -- Original-techn. papers.

Model page created by Fritz Czapek † 29.9.17. See "Data change" for further contributors.
