• Country
• Denmark

• Manufacturer / Brand
• Bang & Olufsen (B&O); Struer

• Year
• 1975

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 110431

• • Brand: B&O

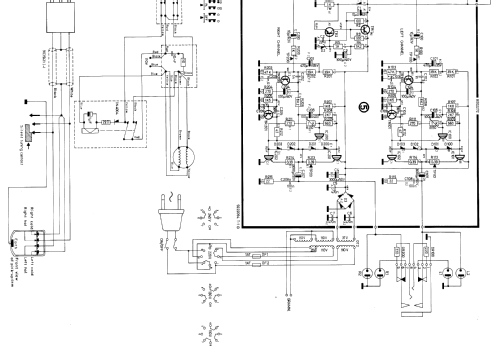

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• FM Broadcast Band Only

• Details
• Record Player (not changer)

• Power type and voltage
• Alternating Current supply (AC) / 110; 130; 220; 240 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 44 W (unknown quality)

• Material
• Various materials

• from Radiomuseum.org

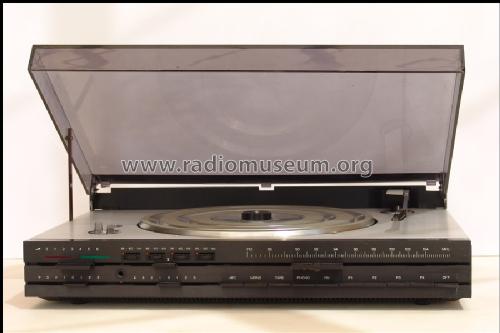

• Model: Beocenter 1800 2610 - Bang & Olufsen B&O; Struer

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 500 x 100 x 350 mm / 19.7 x 3.9 x 13.8 inch

• Notes
• This set is FM only, has variable tuning and also four preset buttons.

• Net weight (2.2 lb = 1 kg)
• 13 kg / 28 lb 10.1 oz (28.634 lb)

• Source of data
• - - Data from my own collection

• Author
• Model page created by John Ackroyd. See "Data change" for further contributors.
