Beocenter 2600 2626
Bang & Olufsen (B&O); Struer
- Country
- Denmark
- Manufacturer / Brand
- Bang & Olufsen (B&O); Struer
- Year
- 1977
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 110430
-
- Brand: B&O

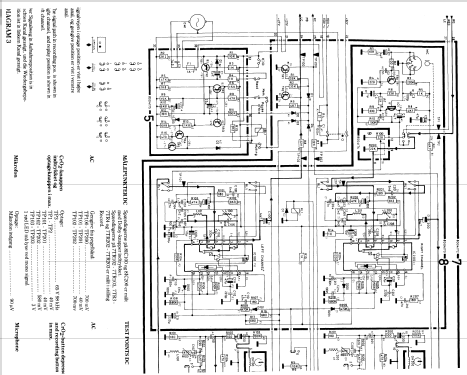

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- Superheterodyne (common); ZF/IF 460/10700 kHz
- Wave bands
- Broadcast, Long Wave and FM or UHF.
- Details
- Cassette-Recorder or -Player
- Power type and voltage
- Alternating Current supply (AC) / 110; 130; 220; 240 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Power out
- 50 W (unknown quality)
- Material
- Various materials
- from Radiomuseum.org
- Model: Beocenter 2600 2626 - Bang & Olufsen B&O; Struer
- Shape
- Book-shelf unit.
- Dimensions (WHD)
- 680 x 90 x 290 mm / 26.8 x 3.5 x 11.4 inch
- Notes
- The FM has four pre-selected channels.
- Net weight (2.2 lb = 1 kg)
- 11 kg / 24 lb 3.7 oz (24.229 lb)
- Source of data
- -- Original-techn. papers.
