Beocord 1000 4203

Beocord 1000 4203; Bang & Olufsen B&O; (ID = 1059451) R-Player
Beocord 1000 4203; Bang & Olufsen B&O; (ID = 1256551) R-Player Beocord 1000 4203; Bang & Olufsen B&O; (ID = 1059450) R-Player
Beocord 1000 4203; Bang & Olufsen B&O; (ID = 1256555) R-Player Beocord 1000 4203; Bang & Olufsen B&O; (ID = 1595355) R-Player
Beocord 1000 4203; Bang & Olufsen B&O; (ID = 1595356) R-Player
Use red slider bar for more.
Beocord 1000 4203; Bang & Olufsen B&O; (ID = 1256551) R-Player
Bang & Olufsen B&O;: Beocord 1000 4203 [R-Player] ID = 1256551 933x624
Select picture or schematic to display from thumbnails on the right and click for download.

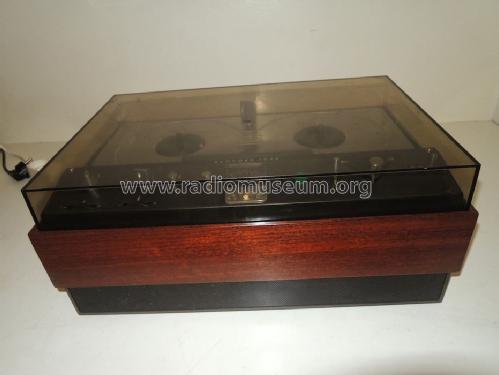

For model Beocord 1000 4203, Bang & Olufsen (B&O); Struer:
By courtesy of Lauritz.com (Bild bearbeitet)

Country:  Denmark
Manufacturer / Brand:  Bang & Olufsen (B&O); Struer
Brand

B&O
Year: 1969 Category: Sound/Video Recorder and/or Player
Semiconductors (the count is only for transistors) 15:
Wave bands - without
Details Tape Recorder
Power type and voltage Alternating Current supply (AC) / 110; 130; 220; 240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 3 W (unknown quality)
from Radiomuseum.org Model: Beocord 1000 4203 - Bang & Olufsen B&O; Struer
Material Various materials
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 455 x 202 x 295 mm / 17.9 x 8 x 11.6 inch
Notes 4,75 / 9,5 / 19 cm/sec., Mono, 2-Spur, automatische Bandendabschaltung
Net weight (2.2 lb = 1 kg) 13.2 kg / 29 lb 1.2 oz (29.075 lb)
Collectors' prices
Source of data -- Original-techn. papers.

Model page created by Fritz Czapek † 29.9.17. See "Data change" for further contributors.



All listed radios etc. from Bang & Olufsen (B&O); Struer
Here you find 442 models, 372 with images and 253 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
