Beocord 1500 2642

Beocord 1500 2642; Bang & Olufsen B&O; (ID = 1060963) R-Player

Beocord 1500 2642; Bang & Olufsen B&O; (ID = 1060964) R-Player

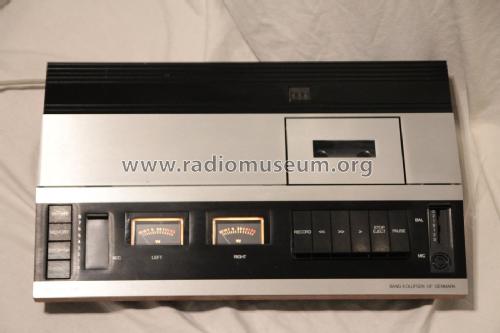

Beocord 1500 2642; Bang & Olufsen B&O; (ID = 2309545) R-Player Beocord 1500 2642; Bang & Olufsen B&O; (ID = 2309544) R-Player

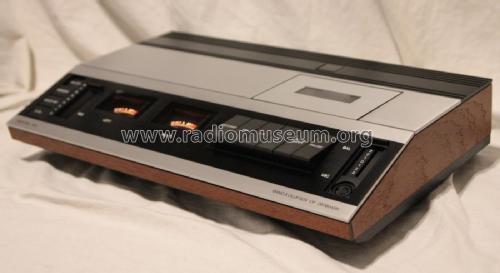

Beocord 1500 2642; Bang & Olufsen B&O; (ID = 2309546) R-Player Beocord 1500 2642; Bang & Olufsen B&O; (ID = 2309547) R-Player
Beocord 1500 2642; Bang & Olufsen B&O; (ID = 2309548) R-Player
Use red slider bar for more.
Beocord 1500 2642; Bang & Olufsen B&O; (ID = 2309545) R-Player
Bang & Olufsen B&O;: Beocord 1500 2642 [R-Player] ID = 2309545 1400x762
Select picture or schematic to display from thumbnails on the right and click for download.
For model Beocord 1500 2642, Bang & Olufsen (B&O); Struer

Country:  Denmark
Manufacturer / Brand:  Bang & Olufsen (B&O); Struer
Brand

B&O
Year: 1978 Category: Sound/Video Recorder and/or Player
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Audio-Amplification
Wave bands - without
Details Cassette-Recorder or -Player
Power type and voltage Alternating Current supply (AC) / 110/220 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: Beocord 1500 2642 - Bang & Olufsen B&O; Struer
Material Various materials
Shape Book-shelf unit.
Dimensions (WHD) 400 x 80 x 250 mm / 15.7 x 3.1 x 9.8 inch
Notes

Type: 2-head, single compact cassette deck
Track System: 4-track, 2-channel stereo
Tape Speed: 4.76 cm/s
Heads: 1 x record/playback, 1 x erase
Tape Type: type I, CrO2
Noise Reduction: B
Frequency Response: 30 Hz to 12.5 kHz  (CrO2 tape)
Signal to Noise Ratio: 64 dB  (dolby B)
Wow and Flutter: 0.2%
Input: 0.175 mV (mic)

Net weight (2.2 lb = 1 kg) 5 kg / 11 lb 0.2 oz (11.013 lb)
Source of data -- Original-techn. papers.

Model page created by Fritz Czapek † 29.9.17. See "Data change" for further contributors.
