• Country
• Denmark

• Manufacturer / Brand
• Bang & Olufsen (B&O); Struer

• Year
• 1981–1983

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 210259

• • Brand: B&O

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Alternating Current supply (AC) / 220; 240 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Various materials

• from Radiomuseum.org

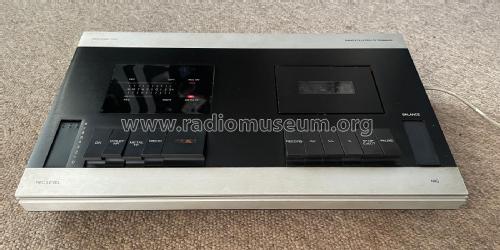

• Model: Beocord 1600 / 1700 2661, 2662, 2666 - Bang & Olufsen B&O; Struer

• Shape
• Tablemodel, slant panel.

• Dimensions (WHD)
• 405 x 100 x 260 mm / 15.9 x 3.9 x 10.2 inch

• Notes

• Beocord 1600 in der Ausführung schwarz eloxiert,
  Beocord 1700 Alu natur eloxiert.

  Types:
  2662 (1981 - Feb 1983)
  GB 2666 (1981 - Aug 1983)

  Compact cassette: C46-C60-C90
  Tape head: Sendust
  Noise reduction: Dolby NR
  Tape switch: Auto. ferro/chrom

  Wow and flutter DIN: <+/- 0.15%
  Speed deviation: <+/- 1%
  Fast forward and rewind: C60 90 sec
  Frequency range chrome/metal/ferro: 30 - 16,000 Hz +/- 3 dB with MPX filter

  Signal-to-noise ratio metal Dolby NR: >66 dB
  Signal-to-noise ratio chrome Dolby NR: >64 dB
  Signal-to-noise ratio ferro Dolby NR: >62 dB

  Power supply:
  2661 220V
  2662 220V
  2666 240V for GB
  Power consumption: 20 W

• Net weight (2.2 lb = 1 kg)
• 5 kg / 11 lb 0.2 oz (11.013 lb)

• Source of data

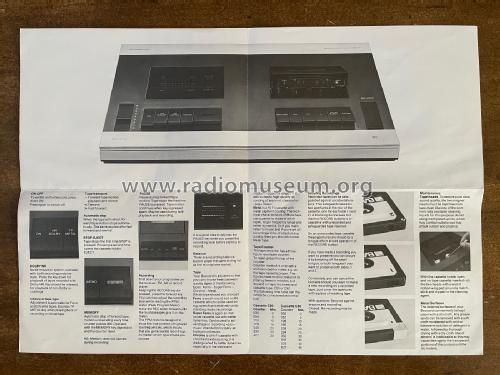

• -- Original-techn. papers.

• Author
• Model page created by Fritz Czapek † 29.9.17. See "Data change" for further contributors.
