Beogram 3000 5903

Beogram 3000 5903; Bang & Olufsen B&O; (ID = 695801) R-Player

Beogram 3000 5903; Bang & Olufsen B&O; (ID = 695804) R-Player

Beogram 3000 5903; Bang & Olufsen B&O; (ID = 696775) R-Player

Beogram 3000 5903; Bang & Olufsen B&O; (ID = 696776) R-Player

Beogram 3000 5903; Bang & Olufsen B&O; (ID = 696777) R-Player

Beogram 3000 5903; Bang & Olufsen B&O; (ID = 696778) R-Player

Beogram 3000 5903; Bang & Olufsen B&O; (ID = 696779) R-Player

Beogram 3000 5903; Bang & Olufsen B&O; (ID = 696780) R-Player

Beogram 3000 5903; Bang & Olufsen B&O; (ID = 696781) R-Player

Beogram 3000 5903; Bang & Olufsen B&O; (ID = 696782) R-Player
Beogram 3000 5903; Bang & Olufsen B&O; (ID = 696106) R-Player
Use red slider bar for more.
Beogram 3000 5903; Bang & Olufsen B&O; (ID = 696106) R-Player
Bang & Olufsen B&O;: Beogram 3000 5903 [R-Player] ID = 696106 521x636
Select picture or schematic to display from thumbnails on the right and click for download.
For model Beogram 3000 5903, Bang & Olufsen (B&O); Struer:

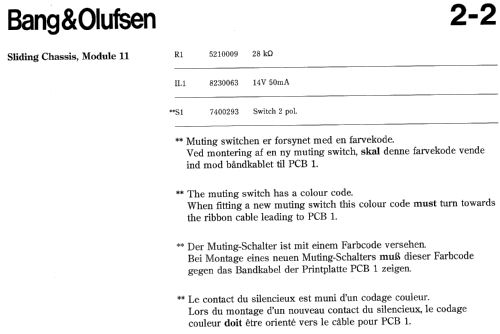

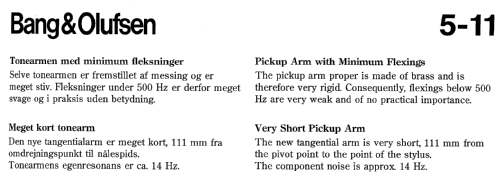

Service Manual

Country:  Denmark
Manufacturer / Brand:  Bang & Olufsen (B&O); Struer
Brand

B&O
Year: 1984 Category: Sound/Video Recorder and/or Player

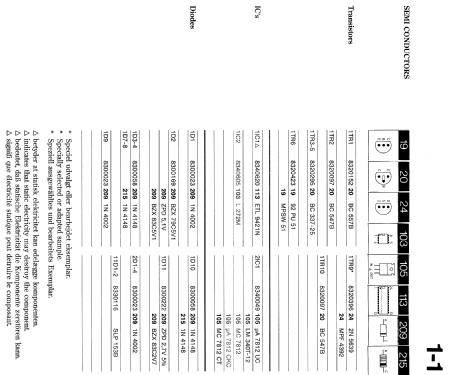

Semiconductors (the count is only for transistors) 8: BC557 BC547 BC337 BC337 BC337 PU51 2N5639 BC547
Wave bands - without
Details Record Player (not changer); Radio Control (+Remote Wire etc)
Power type and voltage Alternating Current supply (AC) / 110; 220 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: Beogram 3000 5903 - Bang & Olufsen B&O; Struer
Material Various materials
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 420 x 75 x 325 mm / 16.5 x 3 x 12.8 inch
Notes 3 ICs. Vollautomatischer Tangentialplattenspieler für 33 und 45 Umdrehungen, über Stereoanlage fernbedienbar.
Net weight (2.2 lb = 1 kg) 5.3 kg / 11 lb 10.8 oz (11.674 lb)
Source of data -- Original-techn. papers.

Model page created by Heribert Jung. See "Data change" for further contributors.
