Beolab 4000 for type family see remarks

Beolab 4000 for type family see remarks; Bang & Olufsen B&O; (ID = 2531089) Speaker-P Beolab 4000 for type family see remarks; Bang & Olufsen B&O; (ID = 2531090) Speaker-P
Beolab 4000 for type family see remarks; Bang & Olufsen B&O; (ID = 2531091) Speaker-P Beolab 4000 for type family see remarks; Bang & Olufsen B&O; (ID = 2531092) Speaker-P
Beolab 4000 for type family see remarks; Bang & Olufsen B&O; (ID = 2531093) Speaker-P Beolab 4000 for type family see remarks; Bang & Olufsen B&O; (ID = 2532645) Speaker-P
Use red slider bar for more.
Beolab 4000 for type family see remarks; Bang & Olufsen B&O; (ID = 2531089) Speaker-P
Bang & Olufsen B&O;: Beolab 4000 for type family see remarks [Speaker-P] ID = 2531089 1400x931
Select picture or schematic to display from thumbnails on the right and click for download.

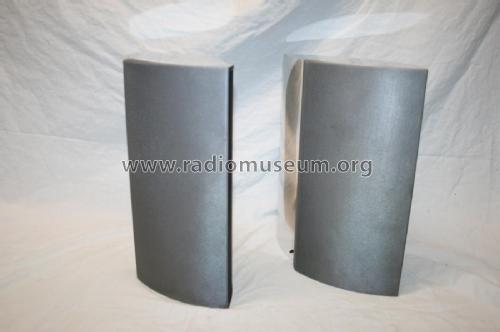

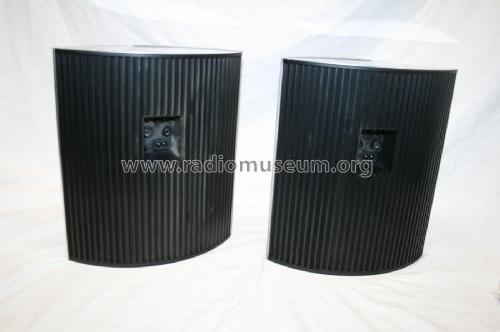

For model Beolab 4000 for type family see remarks, Bang & Olufsen (B&O); Struer:
eigenes Gerät, eigenes Bild

Country:  Denmark
Manufacturer / Brand:  Bang & Olufsen (B&O); Struer
Brand

B&O
Year: 1997 Category: Loudspeaker, headphone or earphone
Main principle Audio-Amplification
Wave bands - without
Details Loudspeaker + integr.Amplifier
Power type and voltage Other, details in remarks or not known. / see remarks: 120-240 Volt
Loudspeaker 2 Loudspeakers
Power out 48 W (unknown quality)
from Radiomuseum.org Model: Beolab 4000 for type family see remarks - Bang & Olufsen B&O; Struer
Material Metal case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 280 x 320 x 130 mm / 11 x 12.6 x 5.1 inch
Notes

Aktive Lautsprecherboxen mit magnetischer Abschirmung.

Prinzip: Bassreflex
Tieftöner: 11 cm
Hochtöner: 1.8 cm
Frequenzbereich: 55 - 20000 Hz
Netto-Volumen: 4 Liter

Poliertes Aluminium in drei Farbvarianten: silber / grün / schwarz, optional Lapisblau, Malachitgrün, Granatrot, Dolimitgelb, Galenitsilber.

Speisung über kompatible B&O-Anlagen mit Power Link-Kabeln oder über Netzanschluss, verschiedene Ausführungen:
Type 6636: EU 230 V
Type 6637: GB 230 V
Type 6638: USA, CDN, TWN 120 V
Type 6639: J 230 V
Type 6640: AUS 240 V
Type 6641: KOR 120 V

Net weight (2.2 lb = 1 kg) 4.5 kg / 9 lb 14.6 oz (9.912 lb)
Price in first year of sale 1'450.00 DM
Literature/Schematics (1) -- Original prospect or advert (Prospekt Sommer 1997)

Model page created by Andreas Sommerer. See "Data change" for further contributors.
