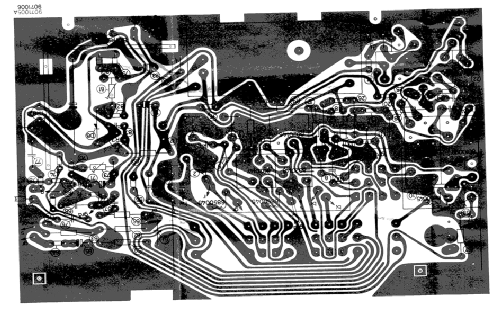

Beolit 700 1505; Bang & Olufsen B&O; (ID = 1330000) Radio

Beolit 700 1505; Bang & Olufsen B&O; (ID = 1330001) Radio

Beolit 700 1505; Bang & Olufsen B&O; (ID = 1657531) Radio

Beolit 700 1505; Bang & Olufsen B&O; (ID = 1657538) Radio

Beolit 700 1505; Bang & Olufsen B&O; (ID = 1657539) Radio

Beolit 700 1505; Bang & Olufsen B&O; (ID = 1659890) Radio
Beolit 700 1505; Bang & Olufsen B&O; (ID = 369899) Radio Beolit 700 1505; Bang & Olufsen B&O; (ID = 370690) Radio
Beolit 700 1505; Bang & Olufsen B&O; (ID = 1292731) Radio Beolit 700 1505; Bang & Olufsen B&O; (ID = 1292732) Radio
Beolit 700 1505; Bang & Olufsen B&O; (ID = 1292733) Radio Beolit 700 1505; Bang & Olufsen B&O; (ID = 1891279) Radio
Use red slider bar for more.
Beolit 700 1505; Bang & Olufsen B&O; (ID = 369899) Radio
Bang & Olufsen B&O;: Beolit 700 1505 [Radio] ID = 369899 933x400
Select picture or schematic to display from thumbnails on the right and click for download.
For model Beolit 700 1505, Bang & Olufsen (B&O); Struer:
My Bang & Olufsen Beolit 700 mains/battery transistor radio c 1972.

Country:  Denmark
Manufacturer / Brand:  Bang & Olufsen (B&O); Struer
Brand

B&O
Year: 1972 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 11: BC148 AC117 AC175 BF115 BF115 BF125 BF121 BF121 BC154 BC140 BC154
Main principle Superheterodyne (common); ZF/IF 468/10700 kHz; 3 AF stage(s)
Wave bands Broadcast, Long Wave and FM or UHF.
Details
Power type and voltage Line / Batteries (any type) / 220-240/5 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 1.2 W (unknown quality)
from Radiomuseum.org Model: Beolit 700 1505 - Bang & Olufsen B&O; Struer
Material Metal case
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 360 x 220 x 60 mm / 14.2 x 8.7 x 2.4 inch
Notes Jacob Jensen design.
Net weight (2.2 lb = 1 kg) 2.5 kg / 5 lb 8.1 oz (5.507 lb)
Price in first year of sale 45.00 GBP
Source of data -- Collector info (Sammler)
Literature/Schematics (1) - - Manufacturers Literature

Model page created by Howard Craven. See "Data change" for further contributors.
